Waveshare SIM8262A-M2 SIMCom Original 5G Module, Interface M.2

Name: Waveshare SIM8262A-M2 SIMCom Original 5G Module, Interface M.2
Brand: Waveshare
SKU: TBD04201934
Price: 5069.00 ZAR
Availability: InStock

R 5,069.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. SIM8262A-M2 SIMCom 5G module Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, up to 2.4Gbps data transmission.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customers applications
4. SIM8262A-M2 adopts M.2 shape, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, safety and flexibility, this module is well suited for many applications
6. Standard M.2 interface
7. High throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules

Specification:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: В38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8v/2.95v
10. Antenna: for 3G / 4G / 5G / GNSS; 4 x IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.

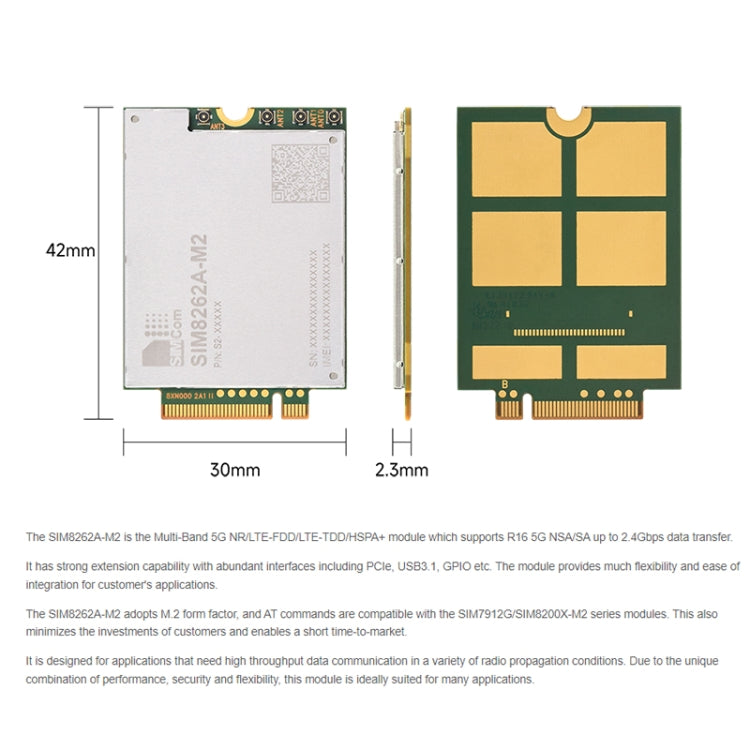

14. Dimensions: 42 x 30 x 2.3mm

Data rate:
1. Sub-6G: 2.4 Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)

Software features:
1. Operating system: Windows / Linux / Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Dialing: RNDIS, NDIS, PPP, MBIM
4. SMS support: MT, MO, CB, Text, PDU
5. Firmware upgrade: support firmware upgrade via USB port
