Description
The Waveshare OV5640 Camera Module Board is a 5-megapixel image sensor module designed for electronics applications. It is suitable for everyday use in various imaging projects, providing high sensitivity and automatic image control functions.
- Product Type: Camera Module Board
- Pixels: 5 Megapixel
- Resolution: 2592 x 1944
- Sensor: OV5640 with OmniBSI technology
- Pixel Size: 1.4um x 1.4um
- Image Control Functions: AEC, AWB, ABF, ABLC
- Image Quality Controls: Color saturation, hue, gamma, sharpness, lens correction
- Image Scaling: Supports scaling, panning, windowing
- Lens: 4.1mm
- CCD Size: 1/4 inch
- Aperture (F): 2.8
- Focal Length: 2.8mm
- Diagonal Field of View: 63 degrees
- Output Formats: YUV (422/420), YCbCr422, RGB565/555/444, CCIR656, RAW RGB, Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit

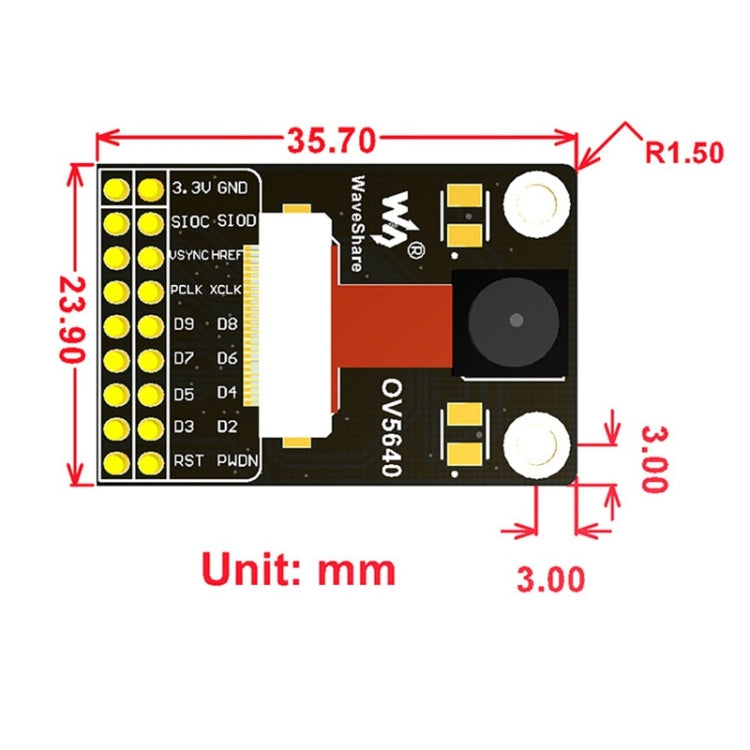

- Dimensions: 35.70mm x 23.90mm
