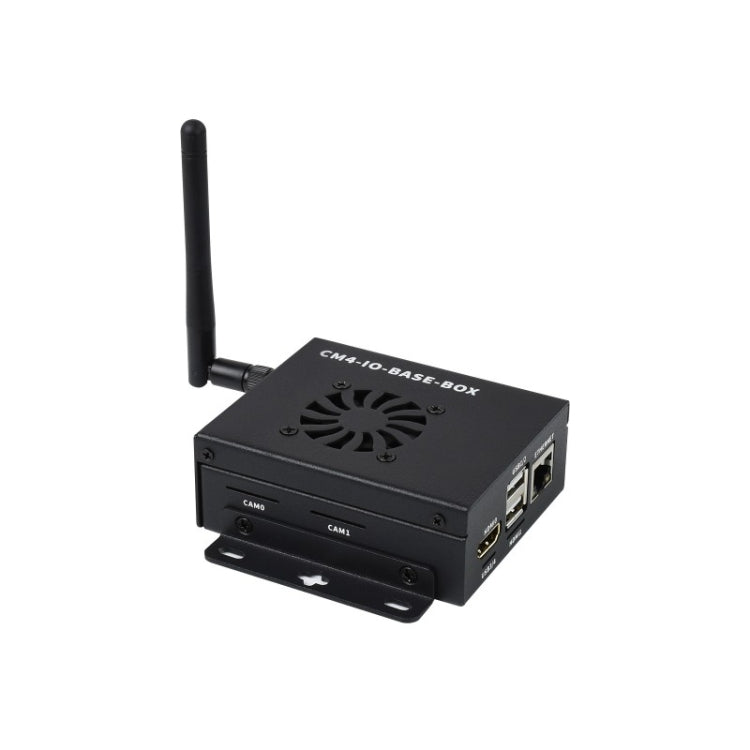

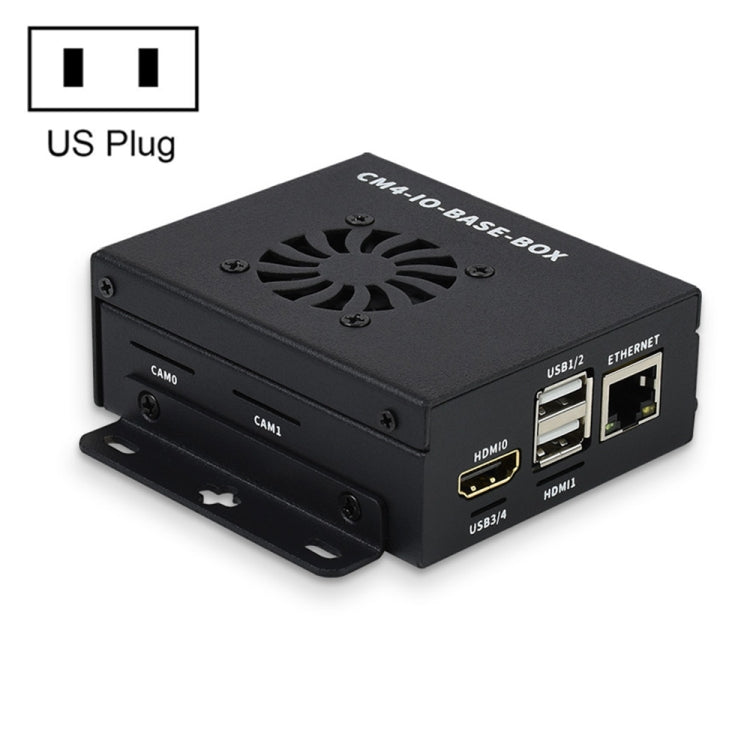

Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(US Plug)

The Waveshare Mini IO Board is a mini PC accessory designed for the Raspberry Pi CM4. It provides essential connectivity options and cooling solutions for everyday computing tasks.

• Product Type: Mini PC Accessories
• Compatibility: Raspberry Pi CM4
• Material: Metal

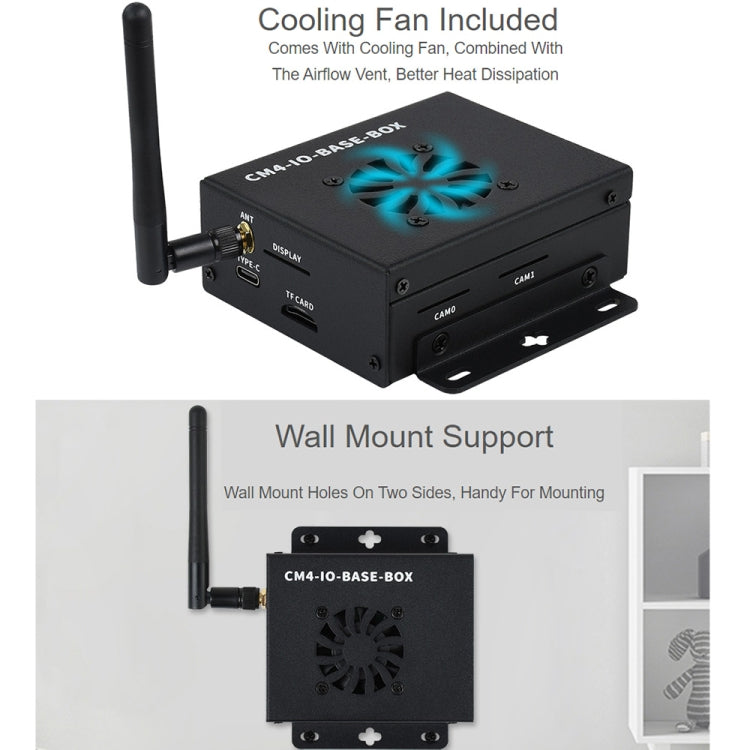

• Cooling Fan: Included

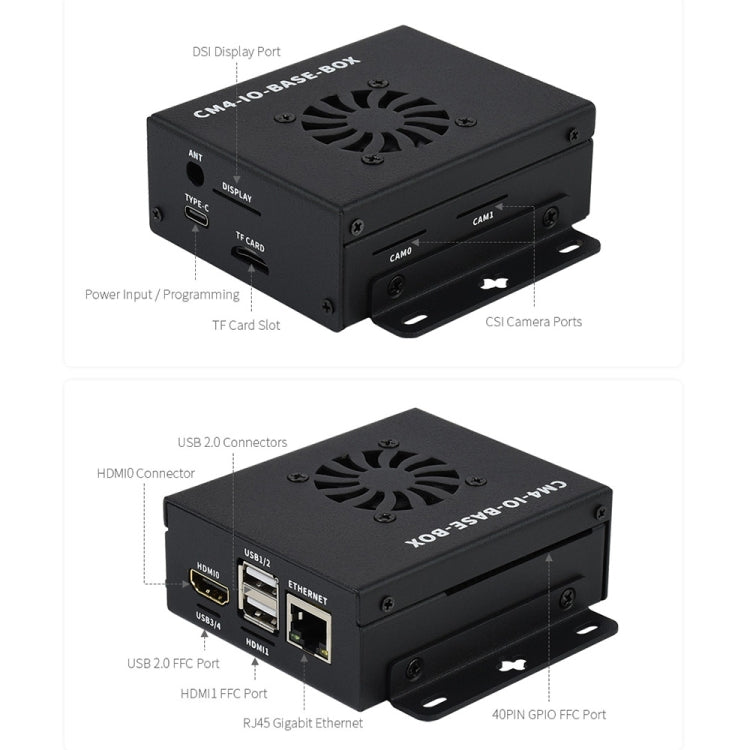

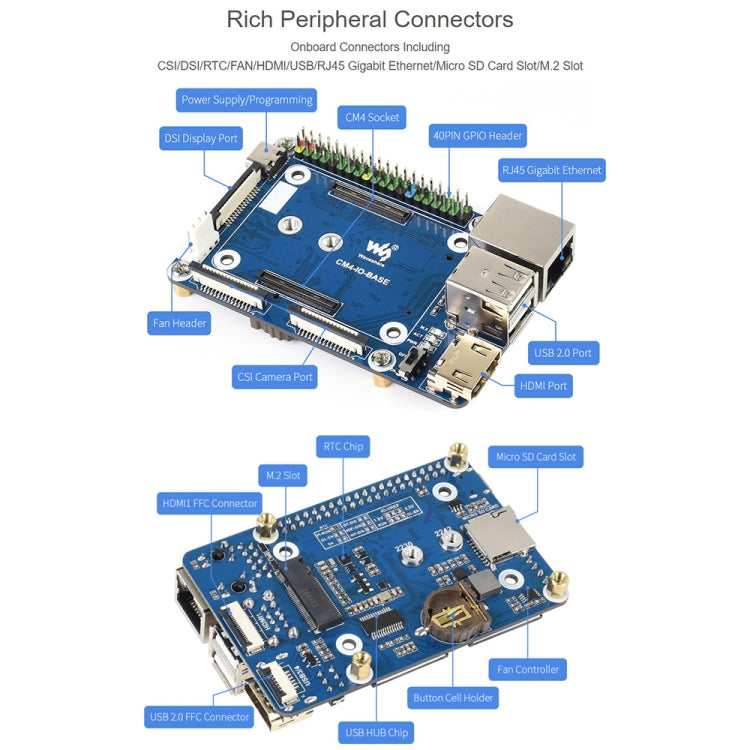

• USB Ports: 2 x USB 2.0, 2 x USB 2.0 (via FFC connector)
• GPIO: 40 PIN GPIO x 1
• Header: M.2 slot x 1
• HDMI: 2 x HDMI (1 x via FFC connector, supports 4K 30fps output)
• DSI Display: MIPI DSI x 1 (15pin 1.0mm FPC)
• CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
• Power Input: 5V
• Fan Voltage: 5V / 12V (no fan control)
• Ethernet: Gigabit Ethernet

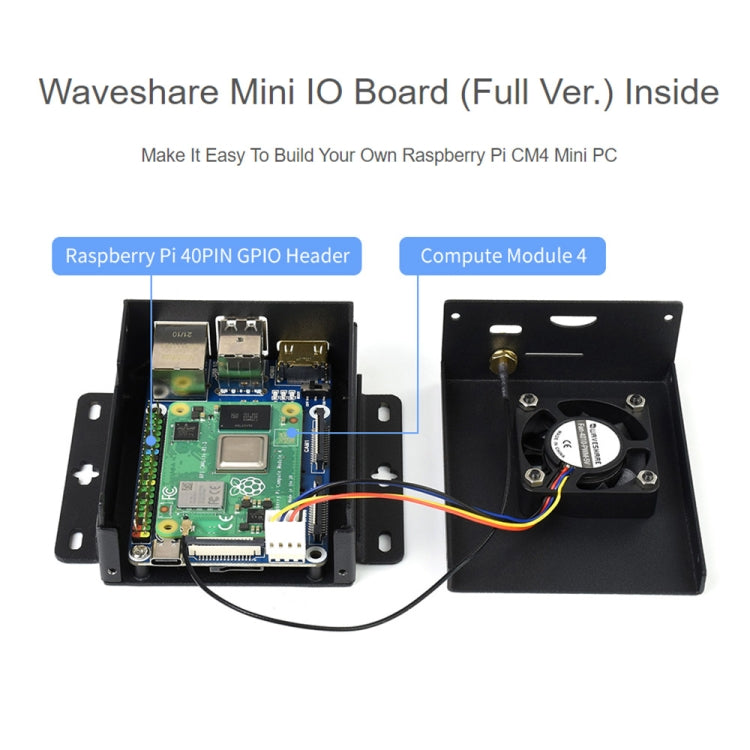

• CM4 Slot: Suitable for all variants of Compute Module 4
• SD Card Slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

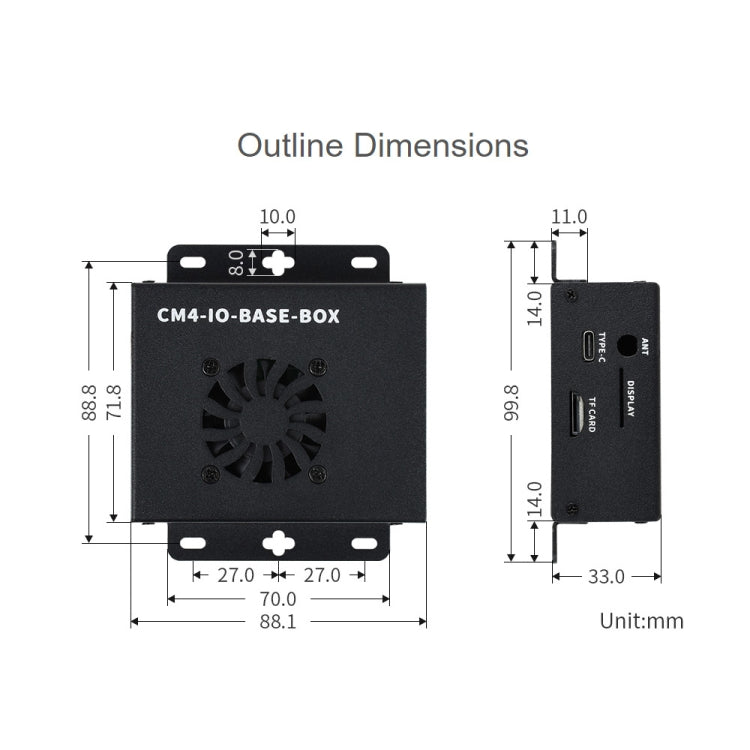

• Size: 85.0 x 56.0 mm
• Package Contents: CM4-IO-BASE-B x 1, Metal case (top and bottom) x 1, Fan-4010-PWM-5V x 1, Screwdriver x 1, Screws pack x 1, 5V 3A USB-C power adapter x 1
