WAVESHARE

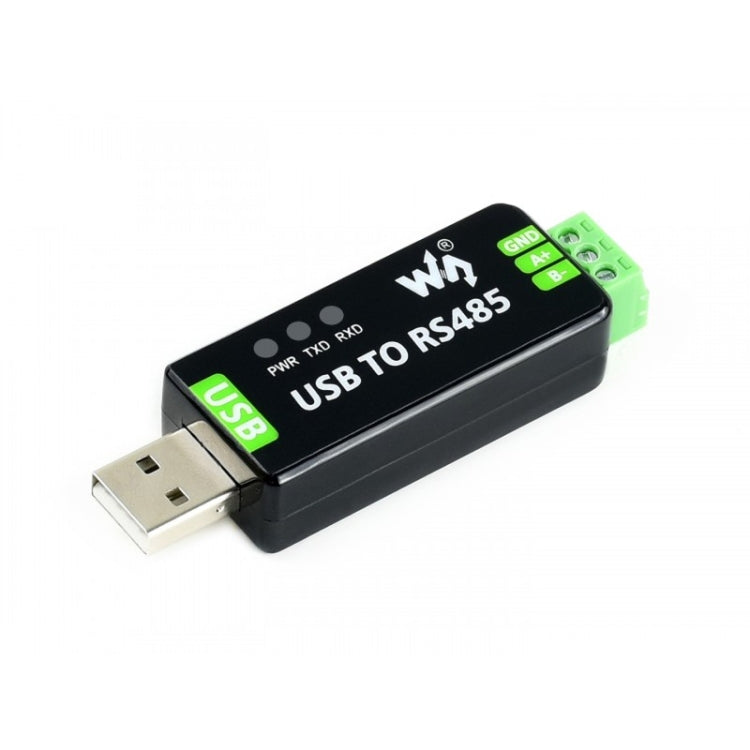

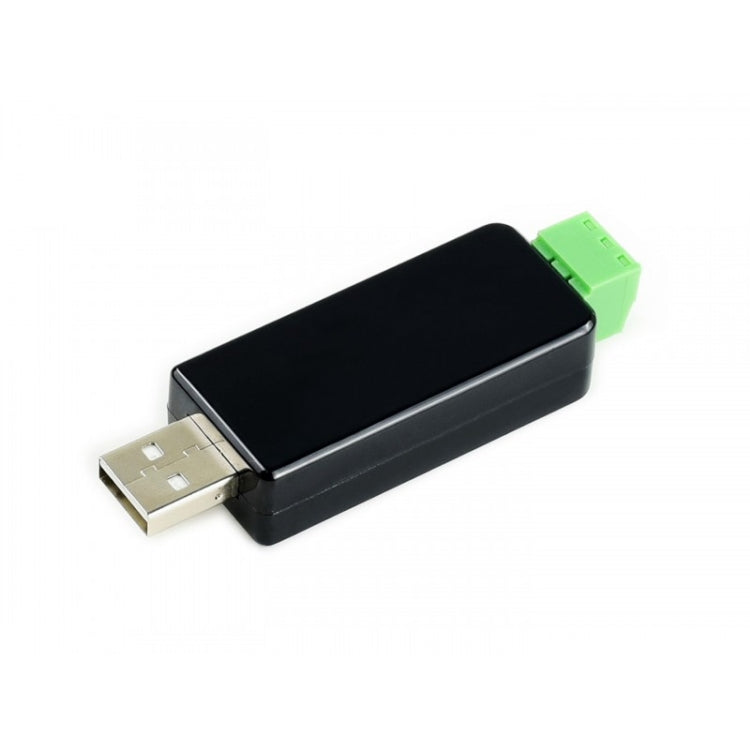

Waveshare Industrial USB to RS485 Converter

Waveshare Industrial USB to RS485 Converter

Regular price R 370.00
Regular price Sale price R 370.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

About The Product
Overview
1. This is an industrial USB to RS485 converter with original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightningproof, resettable fuse, ESD protection, and TVS diode, etc. It is pretty small in size.
2. The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features
1. USB to RS485 communication
2. Adopt original FT232RL and SP485EEN, fast communicating, stable and reliable, better compatibility
3. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
4. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
5. 3 LEDs for indicating the power and transceiver status

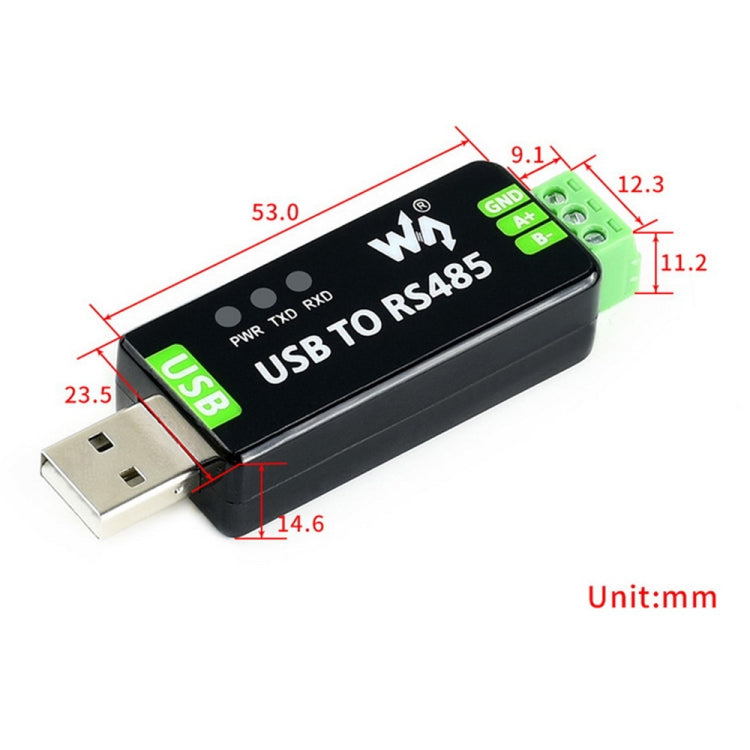

Specifications
1. Product type: Industrial converter
2. Baudrate: 300-921600bps
3. Host port: USB
4. Device port: RS485
5. USB:
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission distance: about 5m
6. RS485:

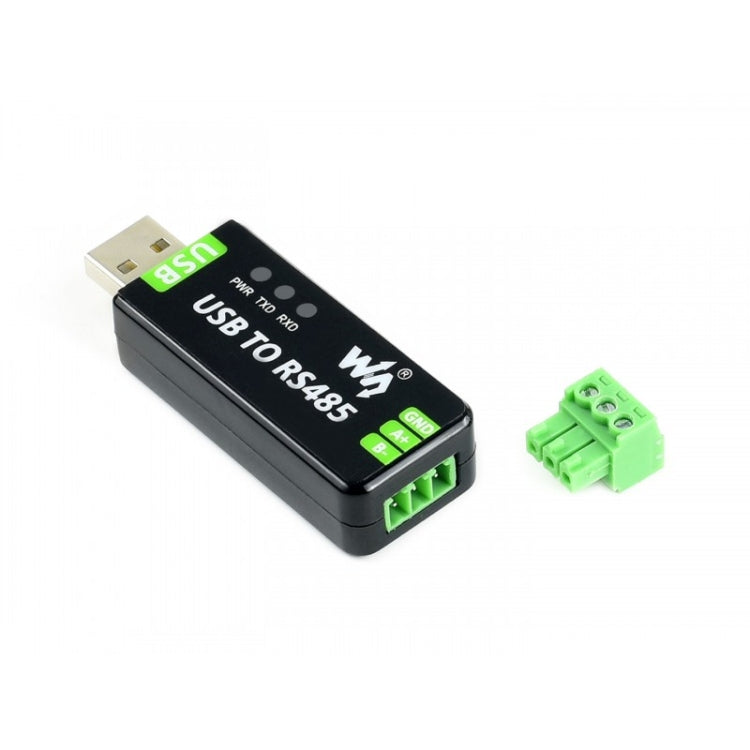

- Connector: screw terminal
- Pins: A+, B-, GND
- Direction control: hardware automatic control
- Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
- Transmission distance: about 1200m (low rate)
- Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
7. LED indicators:
- PWR: red power indicator, light up when there is USB connection and voltage is detected
- TXD: red TX indicator, light up when the USB port sends data
- RXD: red RX indicator, light up when the device ports send data back
8. Operating environment:
- Temperature: -15 ~ 70 degree
- Humidity: 5%RH ~ 95%RH
9. Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Package List
1. USB TO RS485 x 1
2. USB-A male to female cable x 1
3. Screwdriver x 1
