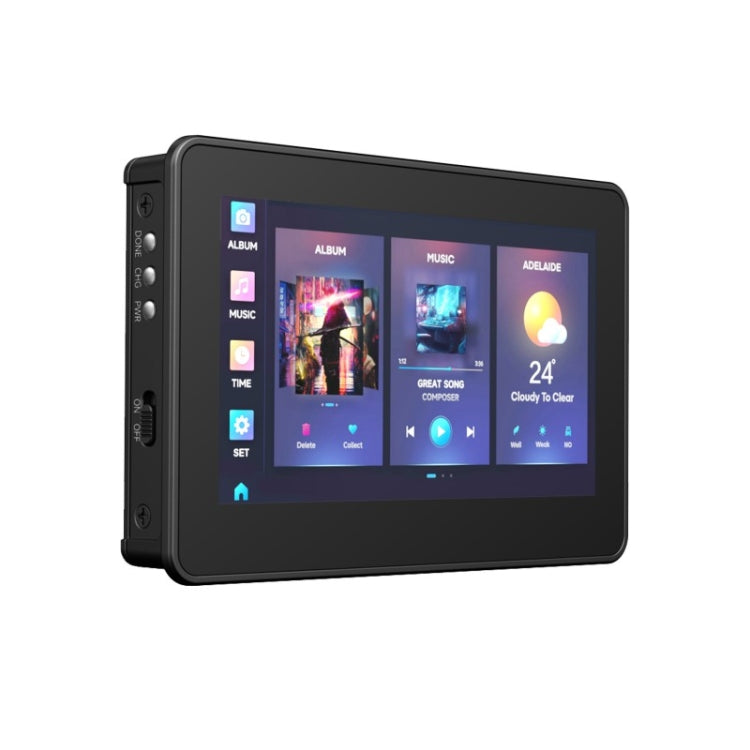

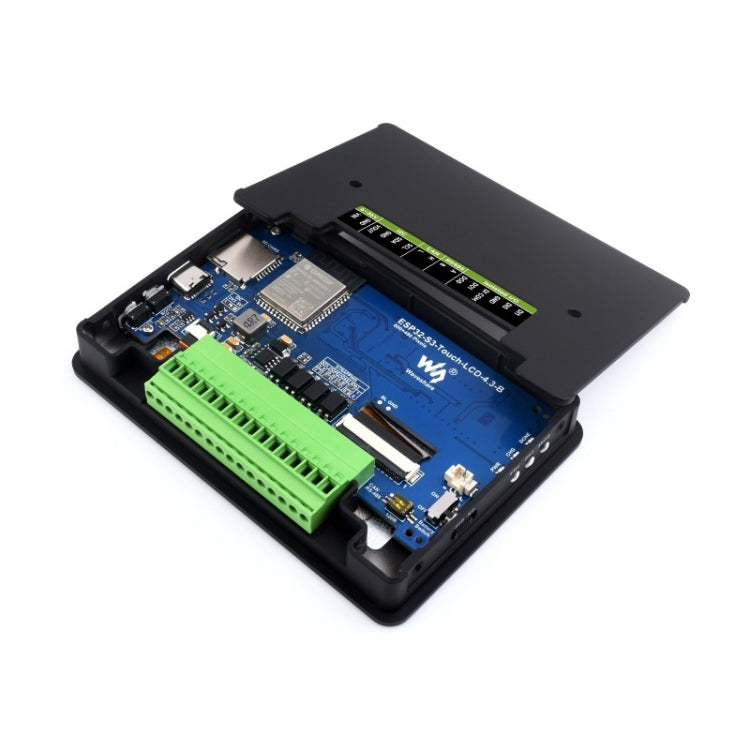

Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board With Case

The Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board is designed for development purposes. It features a capacitive touch screen and various connectivity options.

• Processor: Xtensa32-bit LX7 dual-core, up to 240MHz
• Wi-Fi: 2.4 GHz (802.11b/g/n)
• Bluetooth: 5 (LE), onboard antenna
• Memory: 512 KB SRAM, 384 B ROM, 16 MB Flash, 8 MB PSRAM

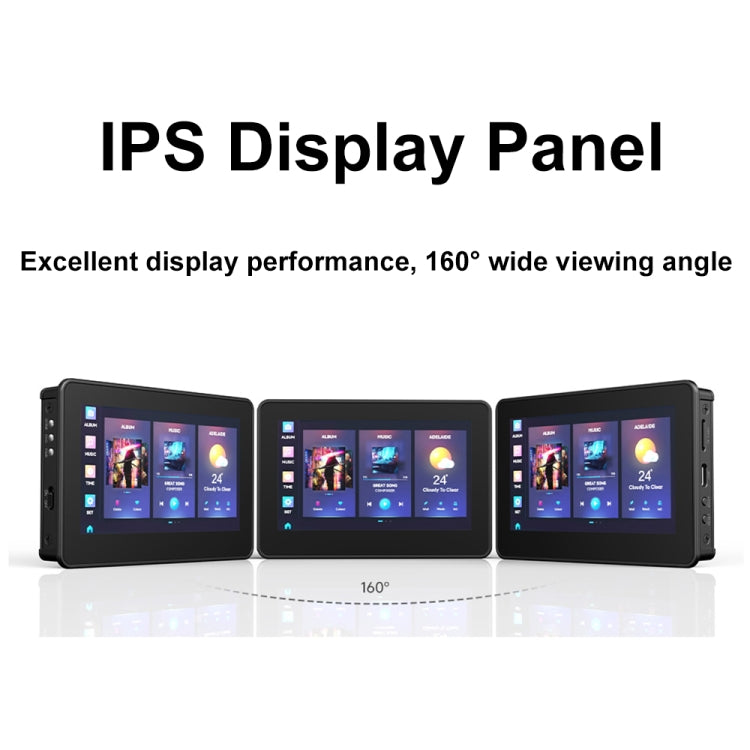

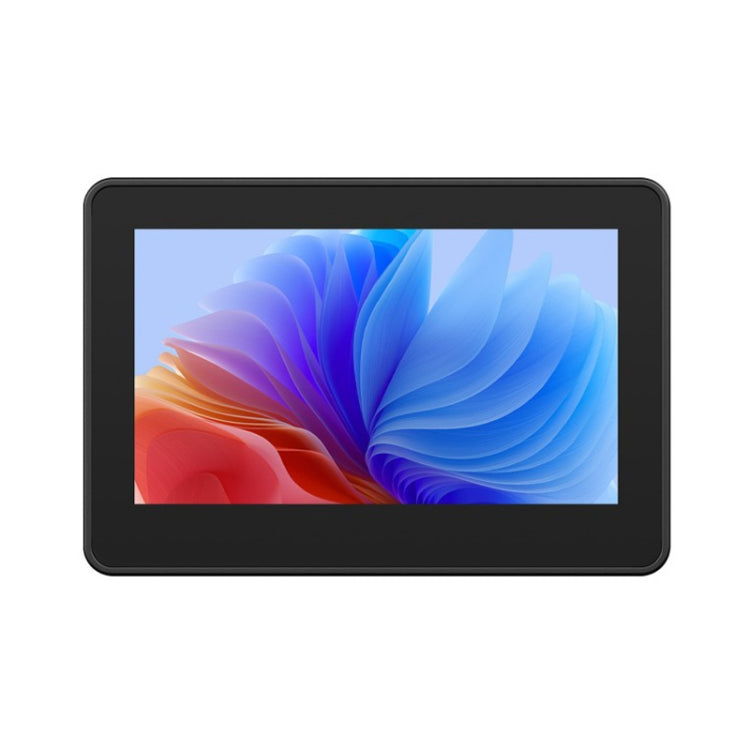

• Display: 4.3-inch LCD, 800×480 resolution, 65K colors

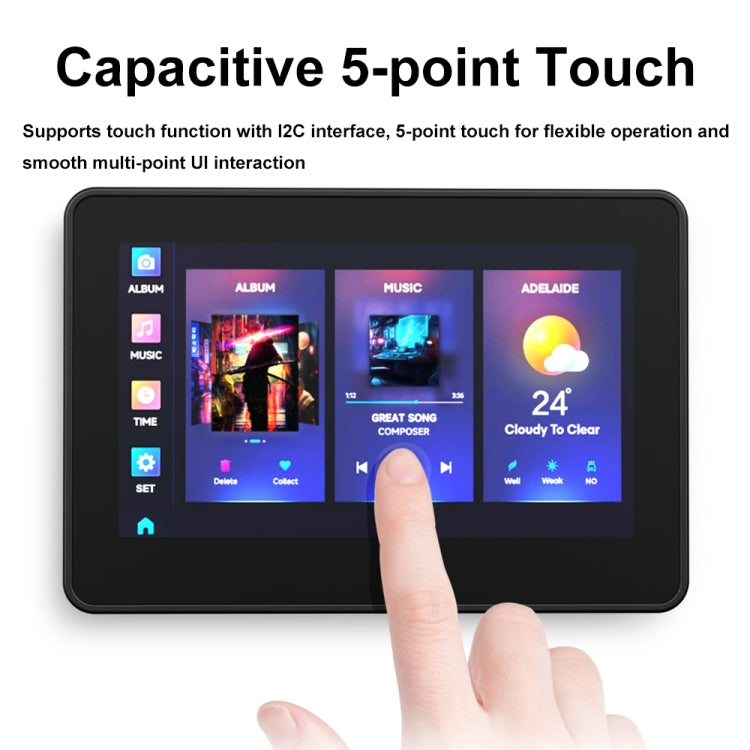

• Touch: Capacitive, 5-point touch, I2C interface
• Voltage Supply: 7-36V wide voltage support
• RTC: Onboard RTC chip with rechargeable battery

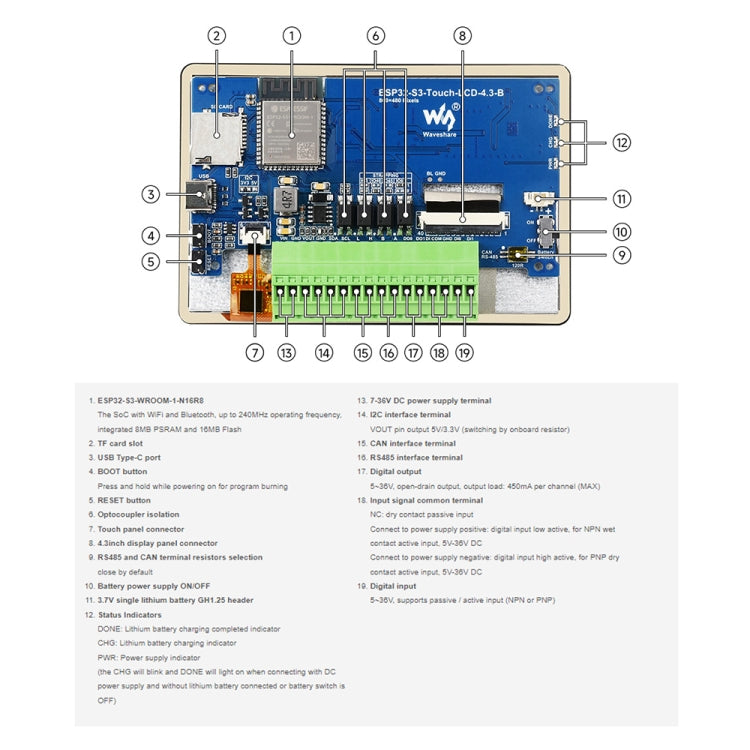

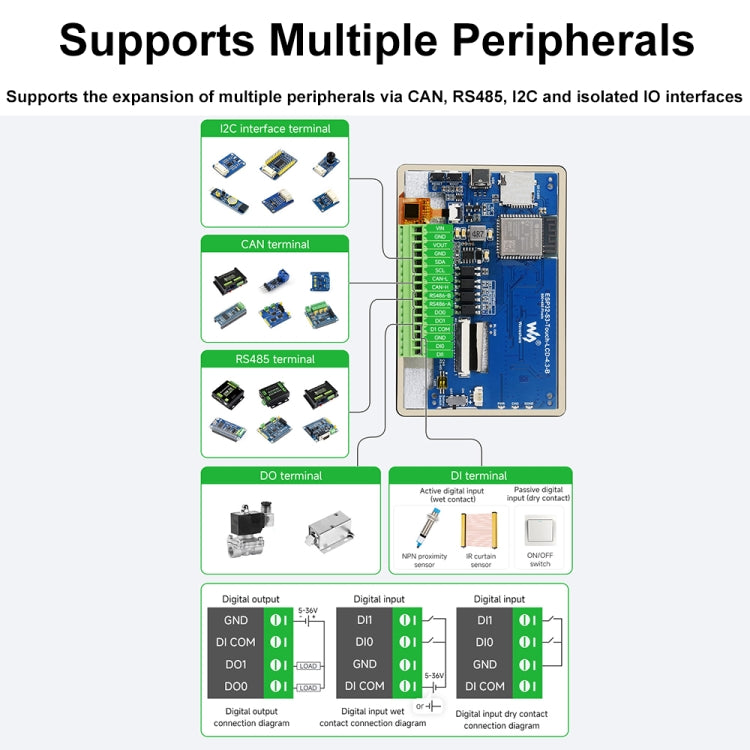

• Interfaces: CAN, RS485, I2C, Micro SD card holder

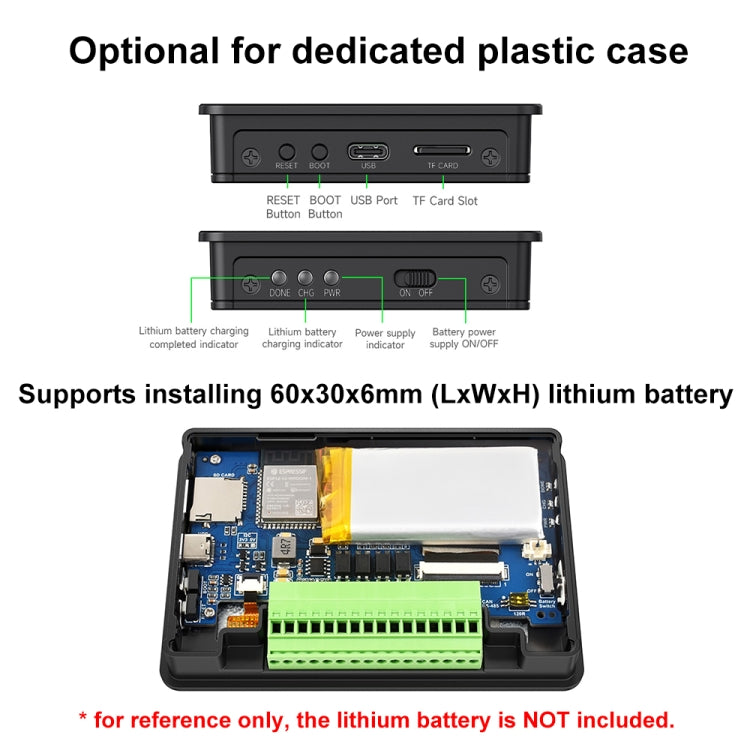

• Battery Interface: GH1.25 2P
• Input: Bidirectional optocoupler isolation
• Output: Optocoupler isolation, sink current up to 450mA (MAX)
• LED Indicator: External for power and battery status
• Clock Control: Flexible clock and module power settings
• Application Areas: HMI, LVGL GUI development

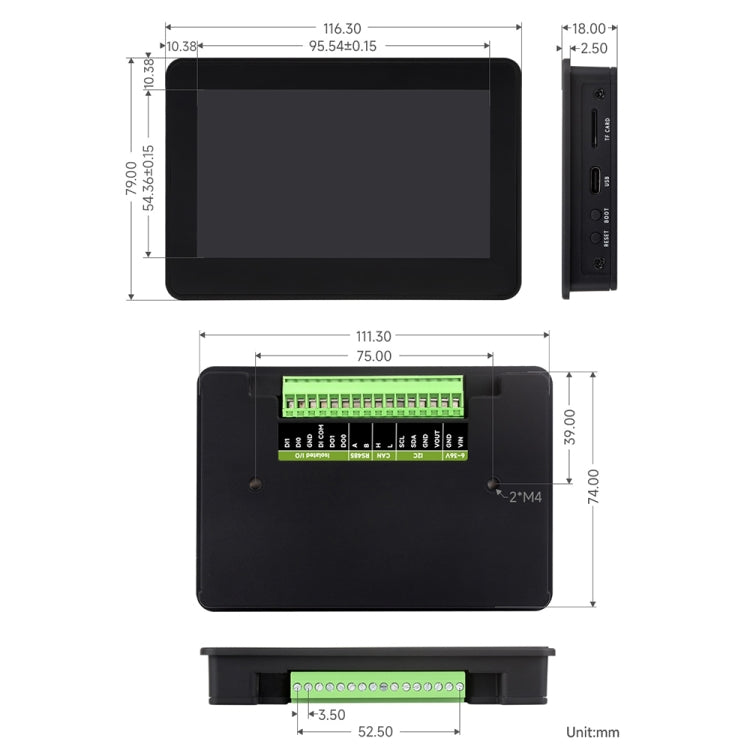

• Product Size: 112.4 x 75.1 x 17.4mm, 116.3 x 79 x 18mm
• Weight: 115g, 149g
