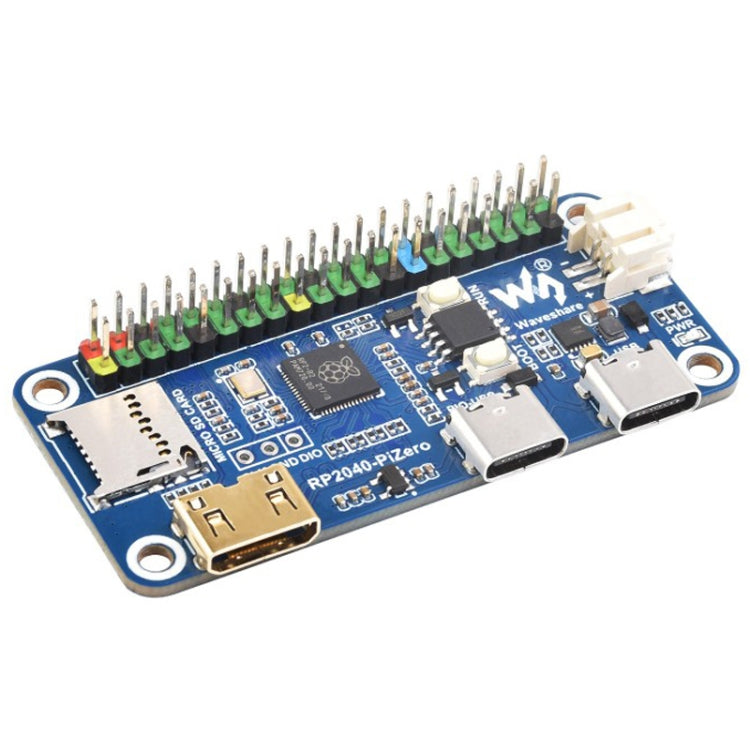

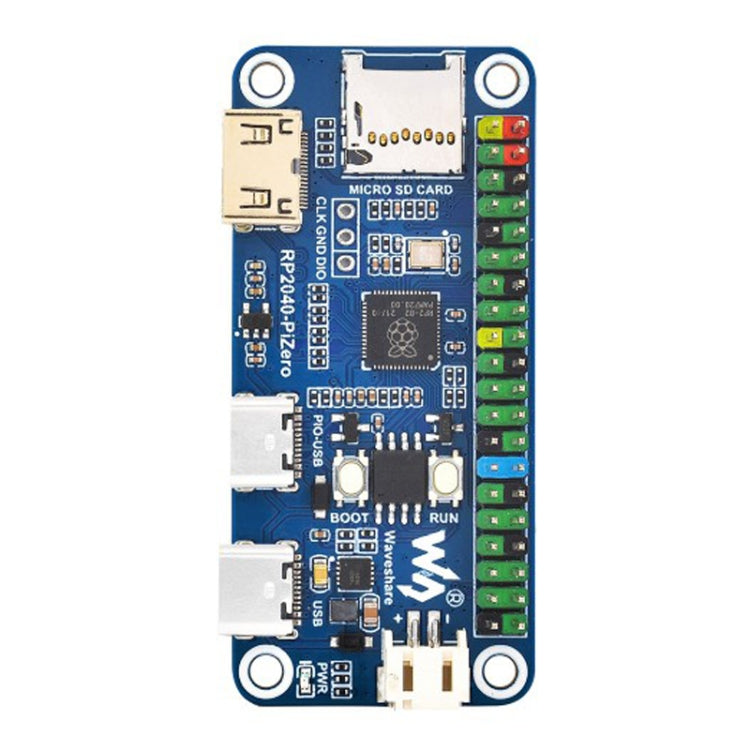

Waveshare 25506 RP2040-PiZero Development Board, Based On Raspberry Pi RP2040, 264KB SRAM And 16MB

Name: Waveshare 25506 RP2040-PiZero Development Board, Based On Raspberry Pi RP2040, 264KB SRAM And 16MB
Brand: Waveshare
SKU: TBD05765166
Price: 349.00 ZAR
Availability: InStock

R 349.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

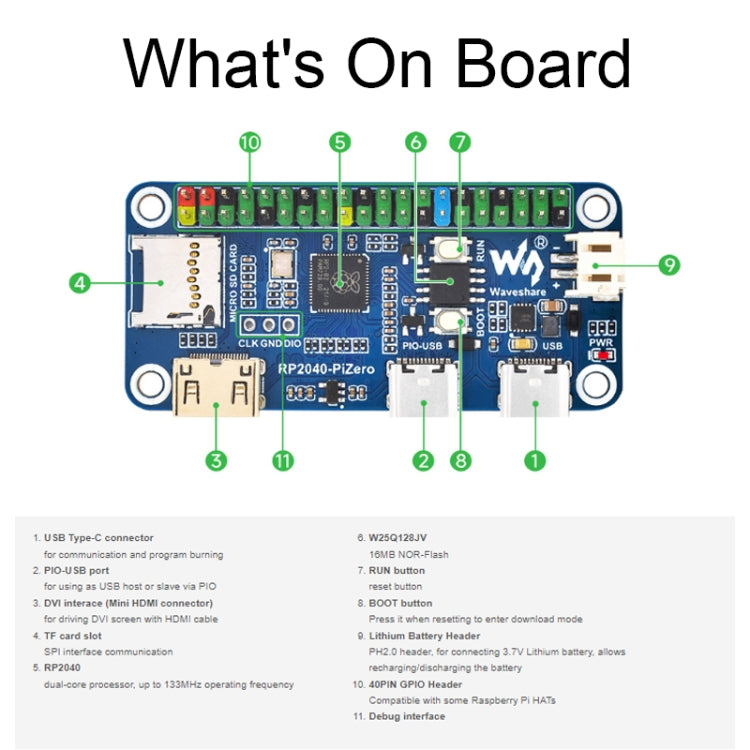

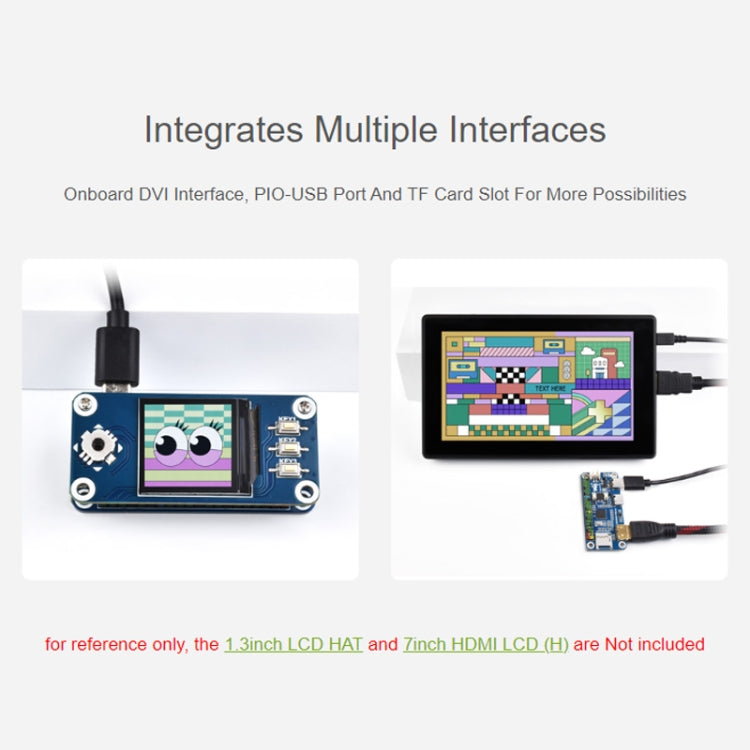

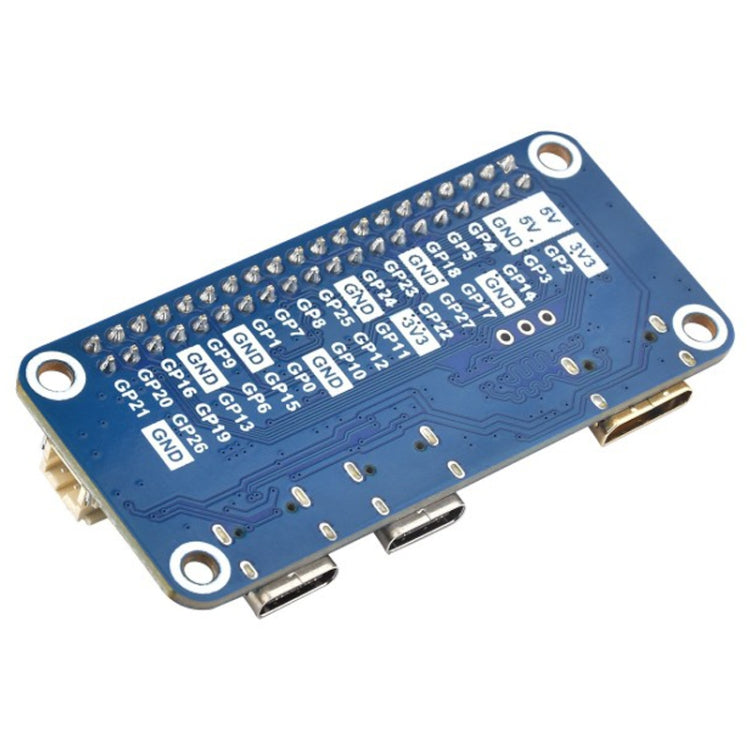

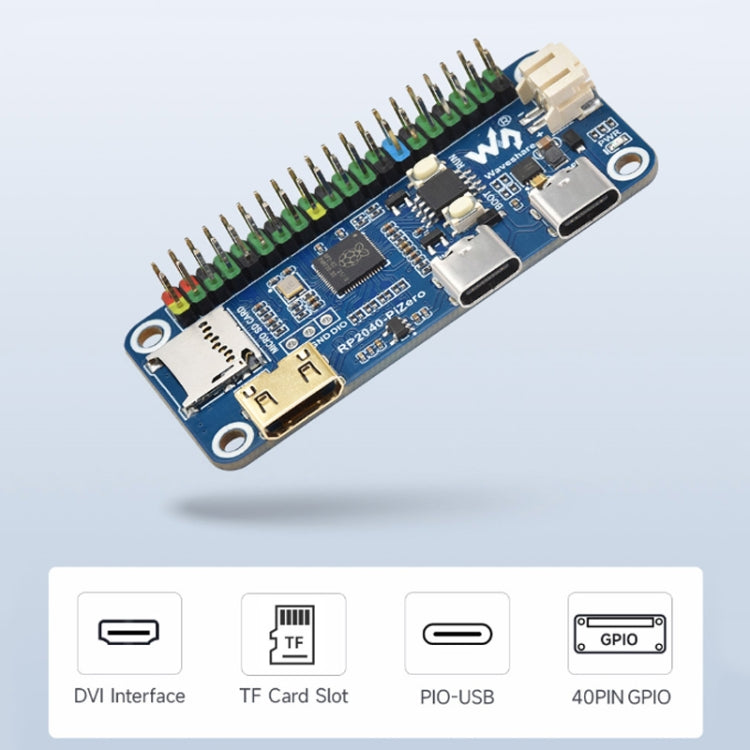

1. Onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into products
2. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
3. Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
4. 264KB of SRAM, and 16MB of onboard Flash memory
5. Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
6. Supports using as a USB host or slave via onboard PIO-USB port
7. Onboard TF card slot for reading and writing TF card
8. Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
9. USB 1.1 with device and host support
10. Drag-and-drop programming using mass storage over USB
11. Low-power sleep and dormant modes
12. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 × Programmable I/O (PIO) state machines for custom peripheral support

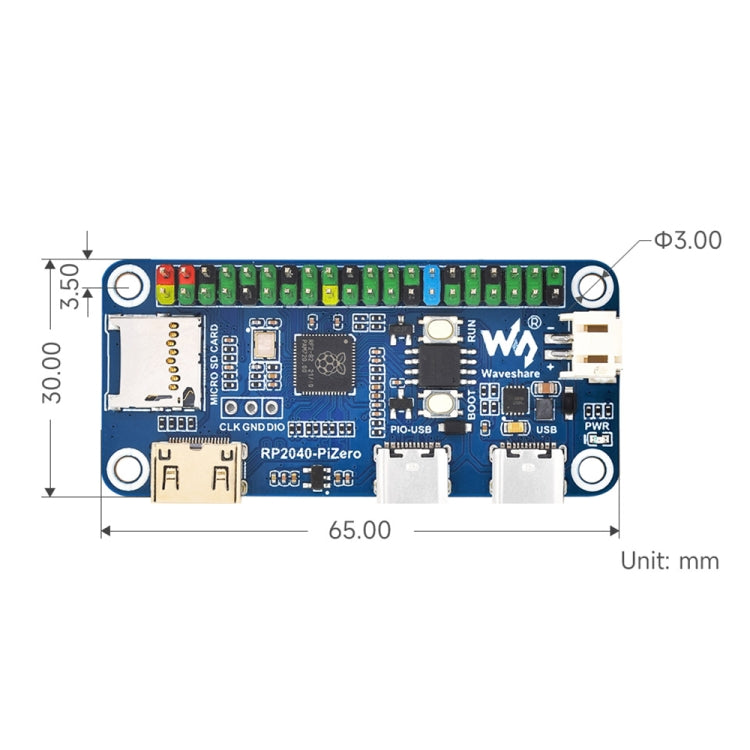

17. Product size: 65 x 30mm
18. Weight: 12 grams
