Waveshare 25219 Industrial USB To 4Ch RS485 Converter
Waveshare 25219 Industrial USB To 4Ch RS485 Converter
Sale
Sold out
Pre-order
Regular price
R 579.00
Regular price
Sale price
R 579.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description

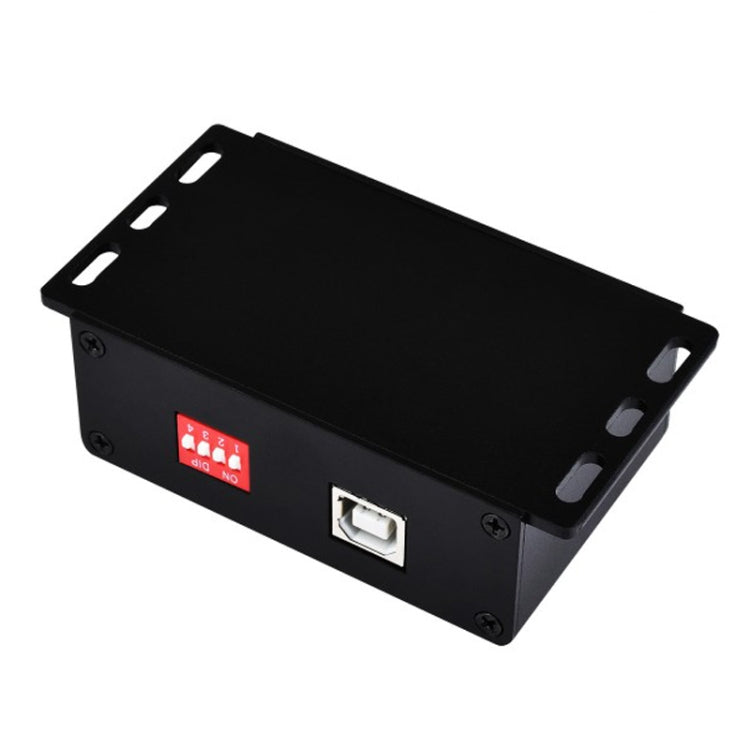

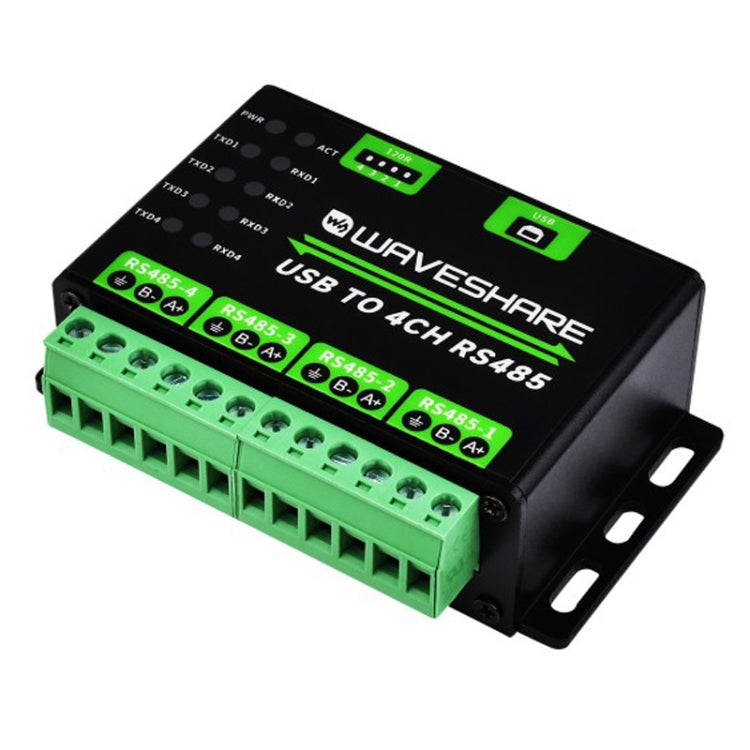

The Waveshare 25219 Industrial USB To 4Ch RS485 Converter is a device that expands USB connectivity to four independent RS485 communication channels. It is suitable for industrial applications requiring concurrent communication across multiple devices.
- Product Type: Sockets Adapters Accessories
- Brand: Waveshare
- Compatibility: Various devices
- Material: Aluminum alloy
- Key Feature: 4-channel RS485 communication
- Intended Use: Industrial use
- Host Port: USB2
- Device Interface: RS485
- Baud Rate: 1200bps-460800bps
- USB Working Voltage: 5V
- USB Connector: USB-B
- Protection: 500mA resettable fuse, ESD protection
- Transmission Distance (USB): About 5m

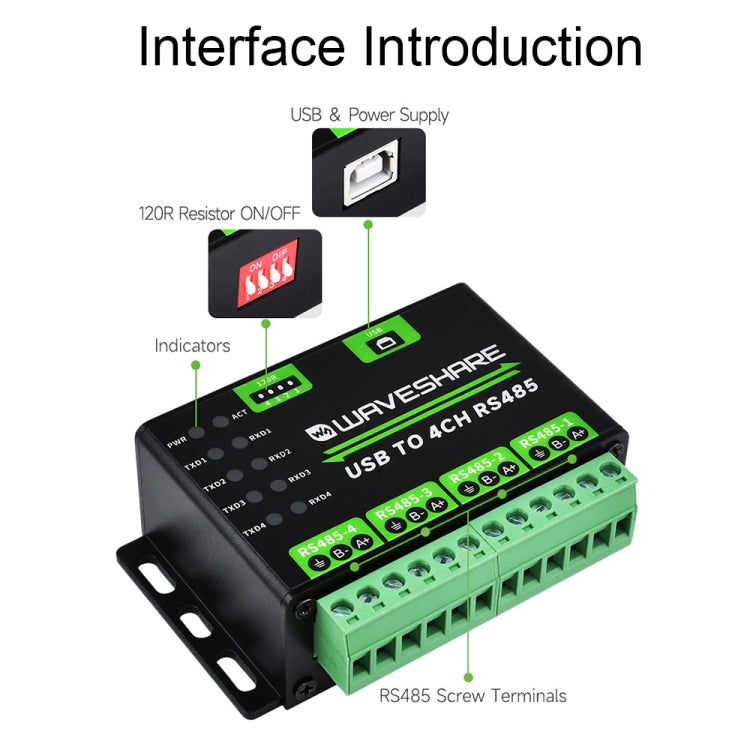

- RS485 Connector: Screw terminal
- RS485 Protection: 600W lightning surge protection, 15KV ESD protection

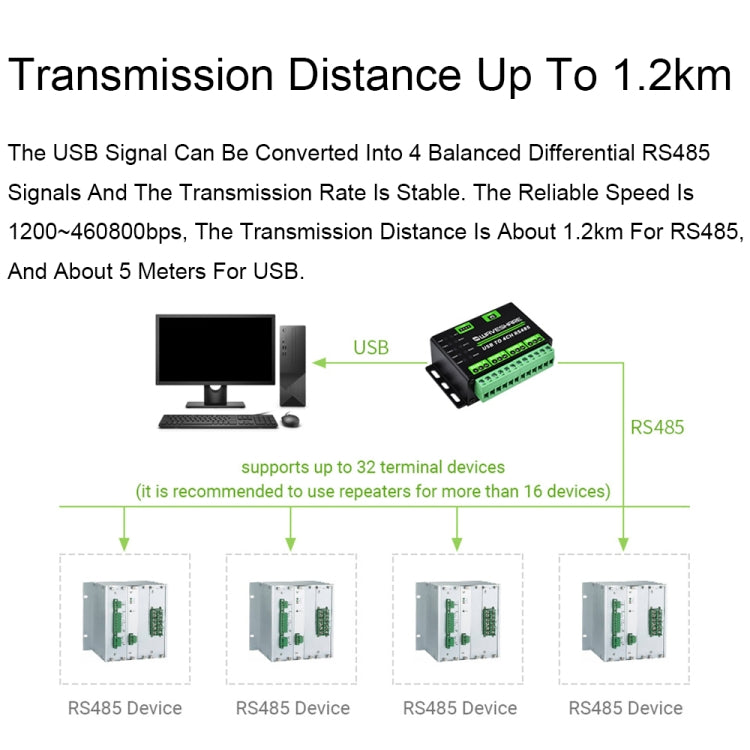

- Maximum RS485 Communication Distance: About 1200m (low speed, with 120R resistor enabled)
- Transmission Method: Point-to-multipoint (up to 32 nodes, repeaters recommended for more than 16 nodes)
- Operating Temperature: -40°C to 85°C
- Operating Humidity: 5%RH to 95%RH
- Operating System Compatibility: Windows 7/8/8.1/10/11, Mac, Linux, Android

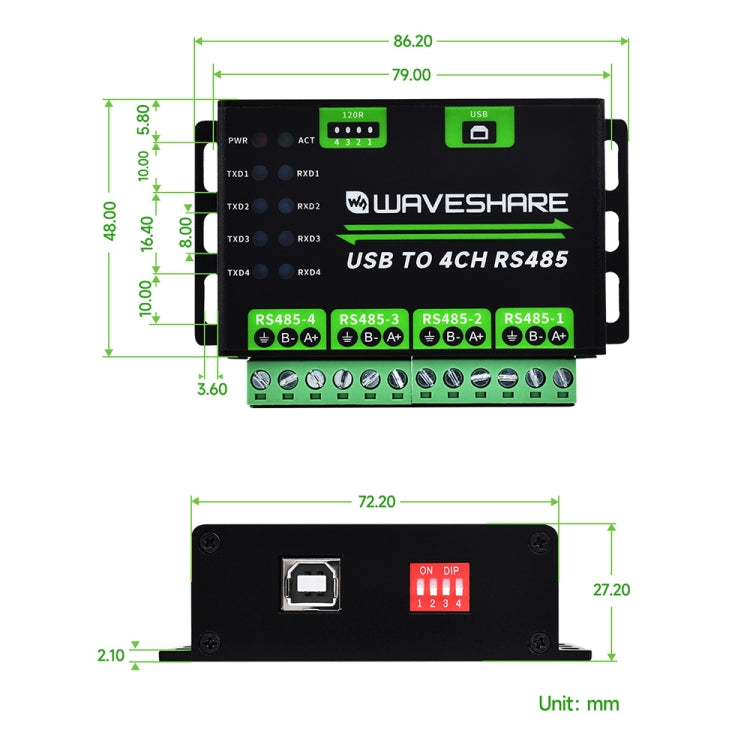

- Product Size: 86.2 x 48 x 27.2 mm
- Weight: 181 grams
- Packing List: USB to 4-way RS485 x1, USB Type A to Type B cable 1.2m x1
