Waveshare 23730 ESP32 Multi-Functional General Driver Board For Robots, Supports WIFI/Bluetooth/ESP-NOW

Name: Waveshare 23730 ESP32 Multi-Functional General Driver Board For Robots, Supports WIFI/Bluetooth/ESP-NOW
Brand: Waveshare
SKU: TBD05765656
Price: 759.00 ZAR
Availability: InStock

R 759.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

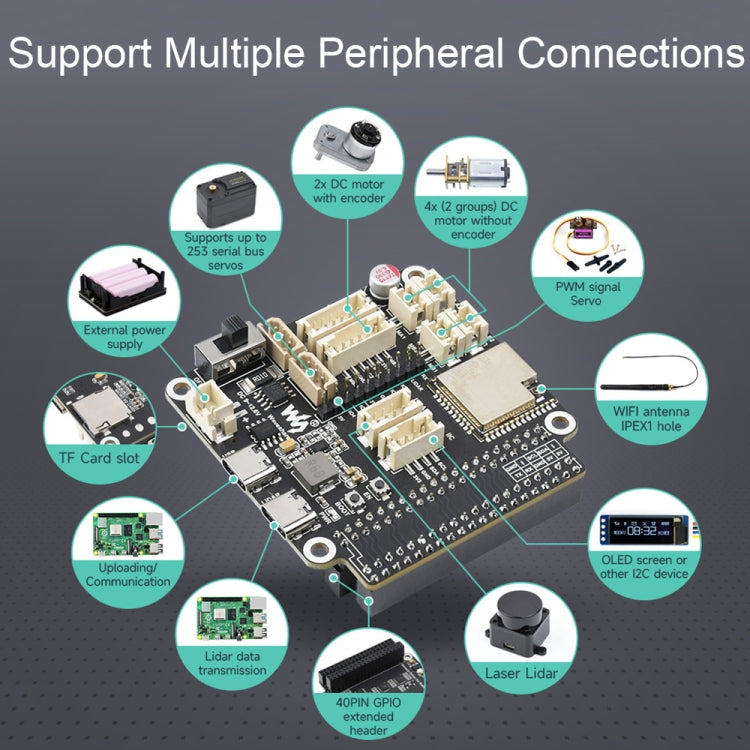

Features:
1. Based on the ESP32-WROOM-32 module, it supports WIFI, Bluetooth, ESP-NOW and other wireless communications
2. Onboard motor control interface for 2x DC motors with encoder or 4x DC motors without encoder (2 groups)
3. Onboard serial bus steering gear control interface, which can control up to 253 ST3215 serial bus steering gears and obtain steering gear feedback

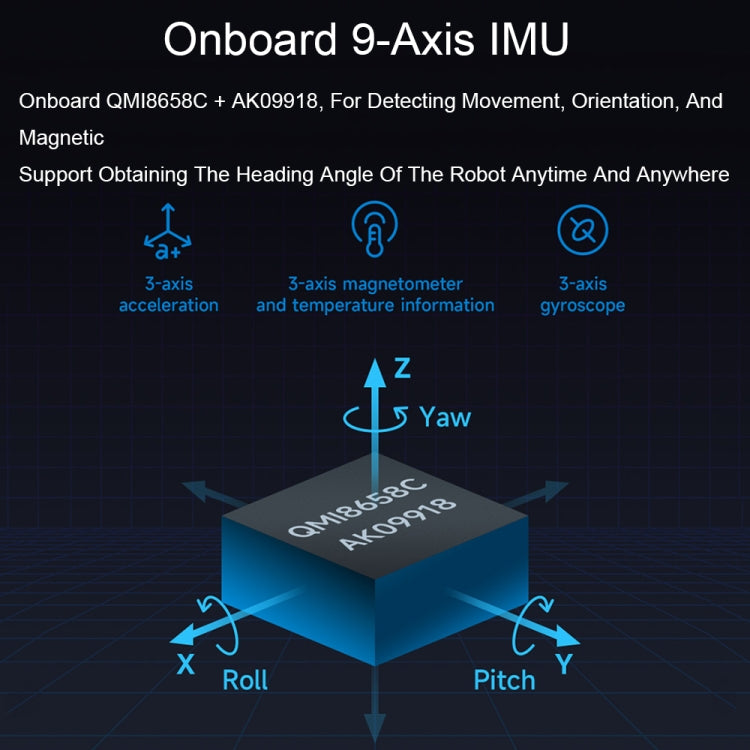

4. Onboard 9-axis IMU, obtain attitude and heading information at any time
5. Support 7-13V power input, can be directly powered by 2S or 3S lithium battery module
6. Automatic download circuit, easy to upload program
7. Support input voltage/current monitoring
8. Onboard TF card slot
9. Onboard lidar interface and integrated UART to USB function
10. I2C interface for connecting peripherals such as OLED, IMU and other I2C devices
11. Adapt multi-function expansion connectors for additional functions, such as controlling servos or relays
12. Onboard 40PIN GPIO header, used to connect to the host (Raspberry Pi/Jetson Nano, etc.) and supply power to it, communicate through serial port or I2C

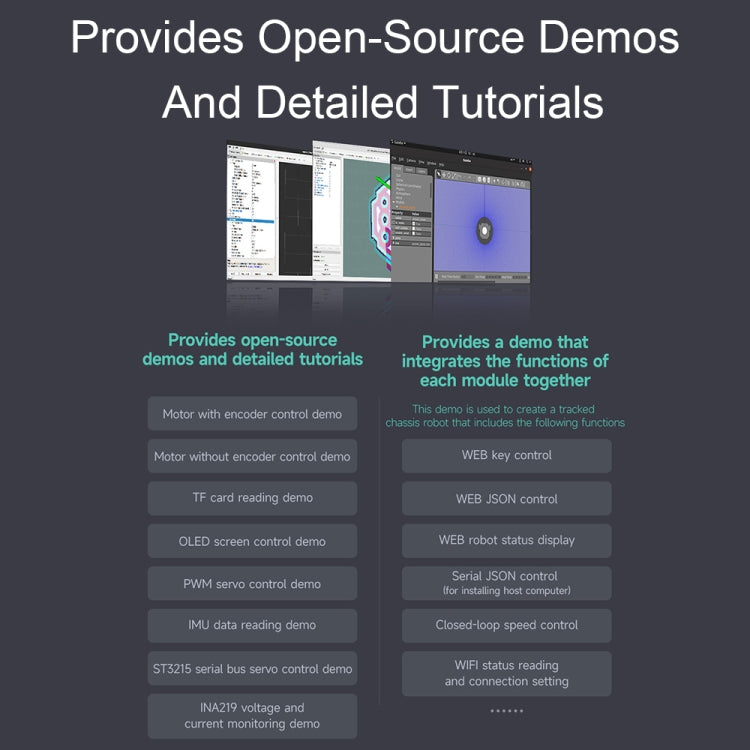

13. Provide open source demos and detailed tutorials for novices, easy to get started

Product parameters:
1. Control module: ESP32-WROOM-32
2. Control chip: ESP32
3. Power supply: DC 7-13V
4. Power interface: XH2.54
5. Antenna connector: IPEX1
6. Interface: Type-C
7. Wireless communication: WIFI, Bluetooth, ESP-NOW

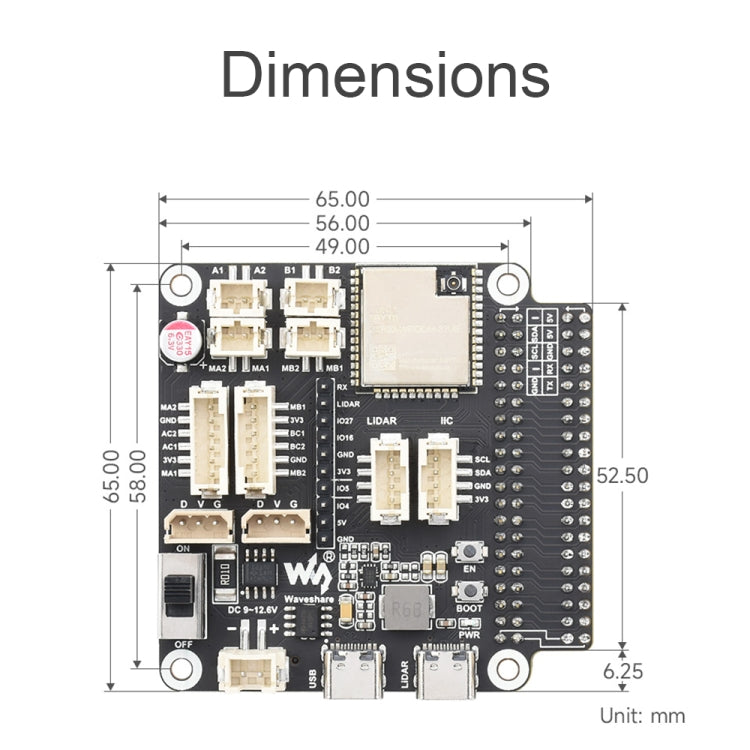

8. Mounting hole spacing: 49 x 58mm
9. Installation hole diameter: 3mm
10. Dimensions: 65 x 65mm
11. Weight: 49 grams

Packing list:
-Robot Universal Drive x 1
-Screw Pack x 1
