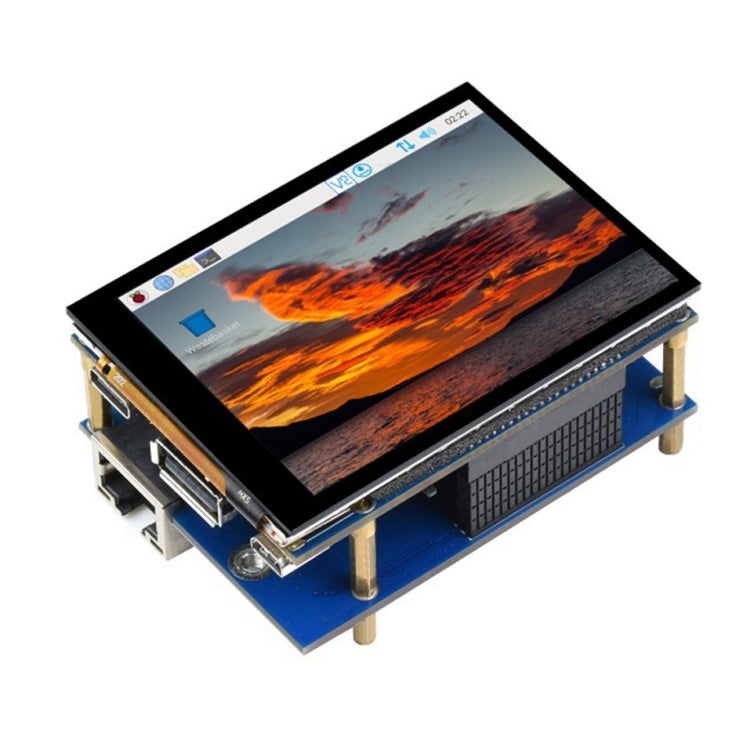

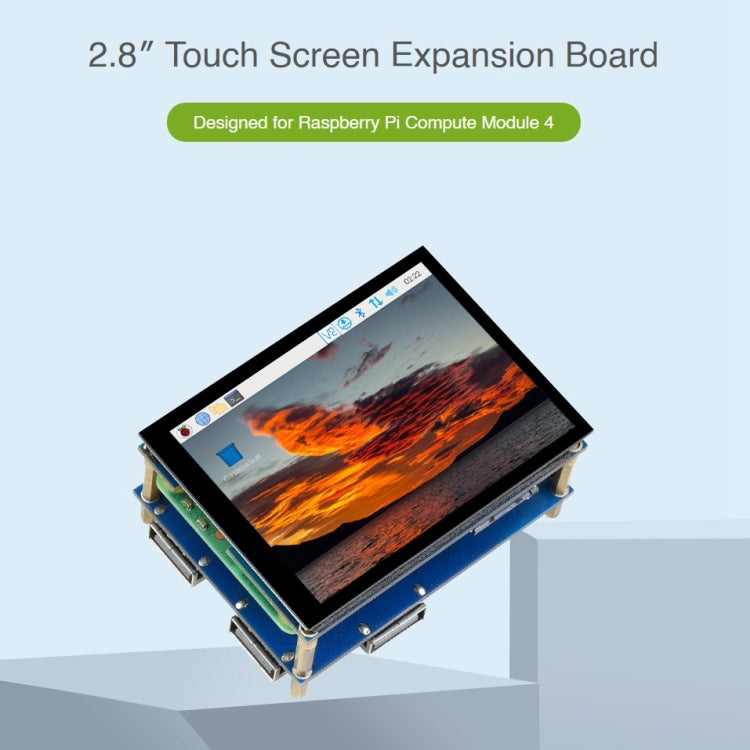

Waveshare 2.8 inch Touch Screen Expansion Fully Laminated Display For Raspberry Pi CM4

Name: Waveshare 2.8 inch Touch Screen Expansion Fully Laminated Display For Raspberry Pi CM4
Brand: WAVESHARE
SKU: DIY0239
Price: 1439.00 ZAR
Availability: InStock

R 1,439.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

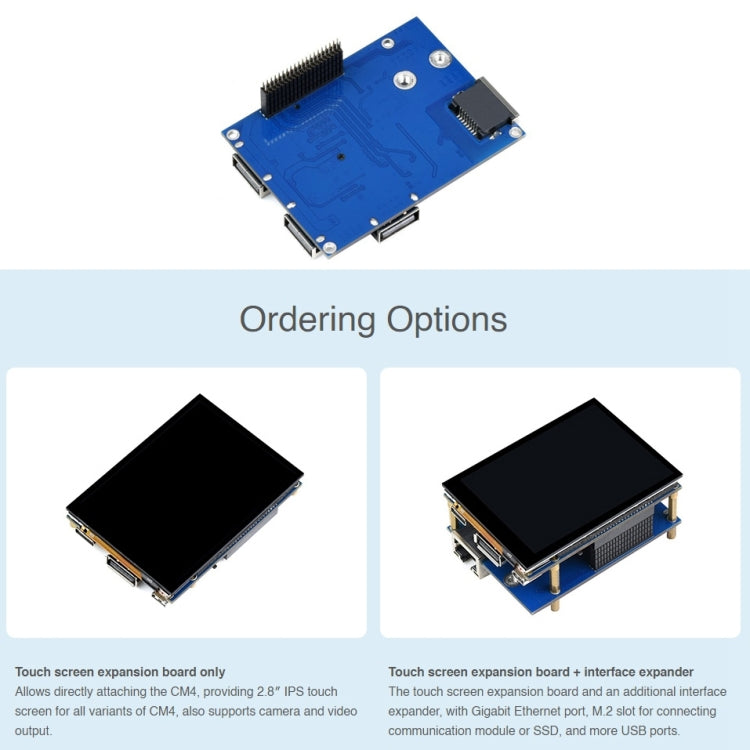

1. Touch screen expansion board + interface expander: The touch screen expansion board and an additional interface expander, with Gigabit Ethernet port, M.2 slot for connecting communication module or SSD, and more USB ports.

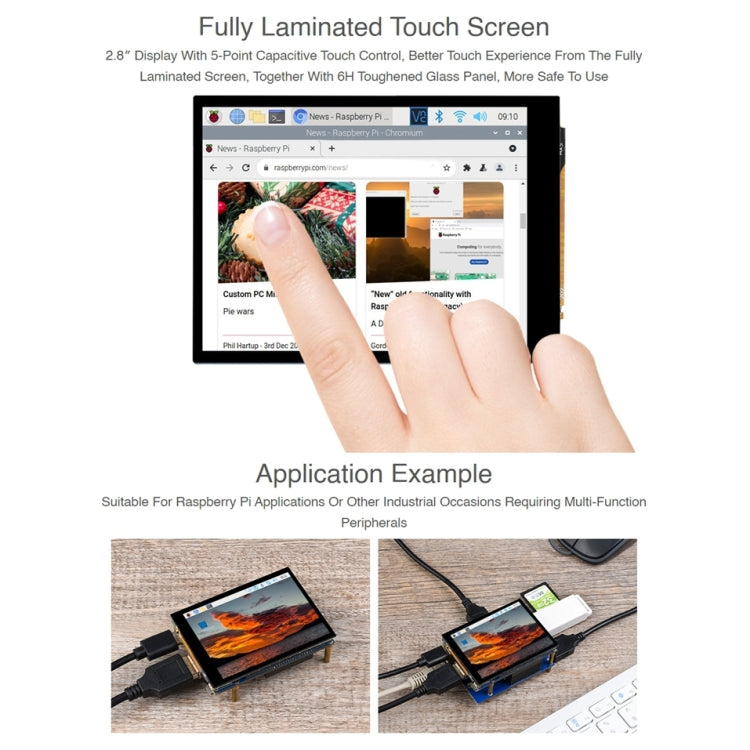

2. 2.8 inch display with 5-point capacitive touch control, better touch experience from the fully laminated screen, together with 6H toughened glass panel, more safe to use

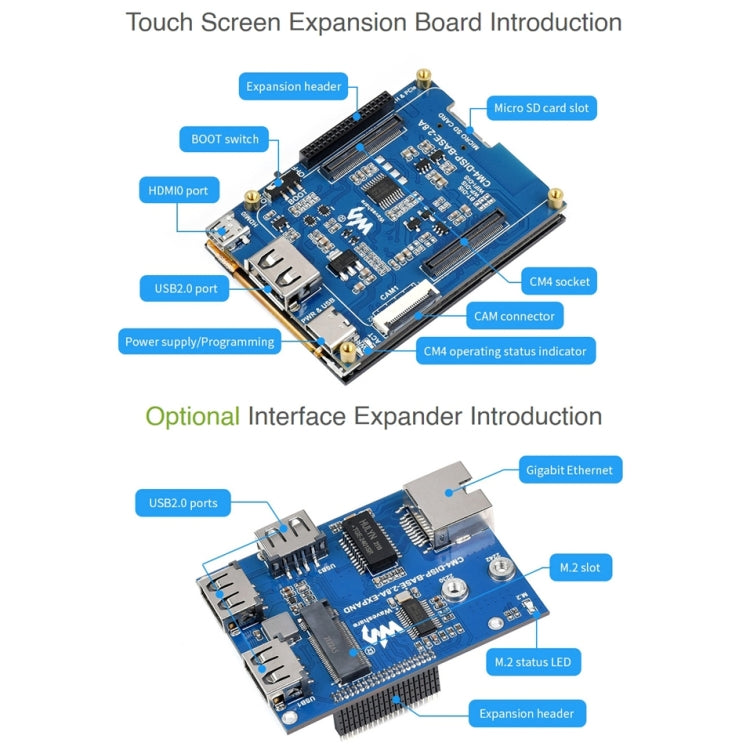

3. Touch Screen Expansion Board Introduction:

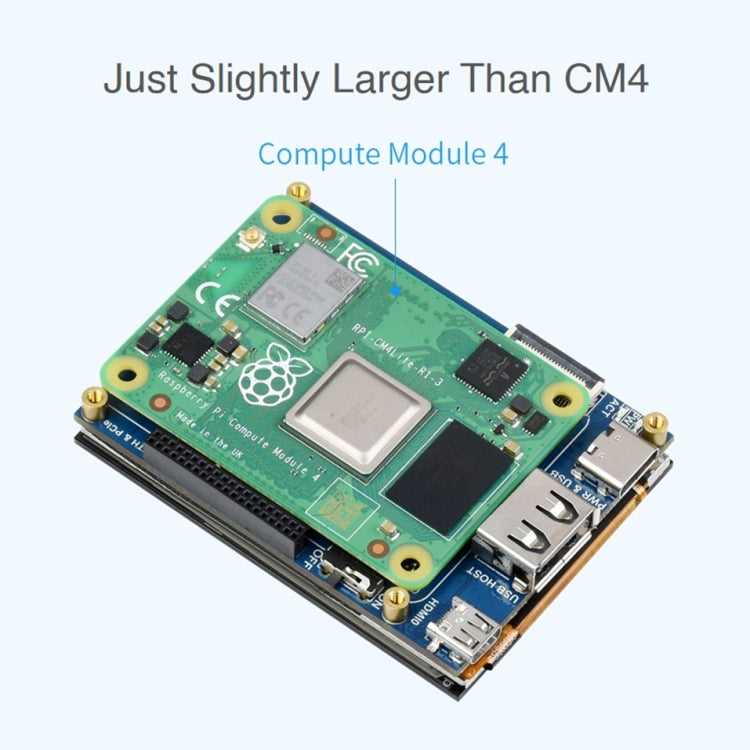

- CM4 socket: Suitable for all variants of Compute Module 4
- USB: USB 2.0 x 1
- Connector: MIPI CSI 22PIN 0.5mm camera connector

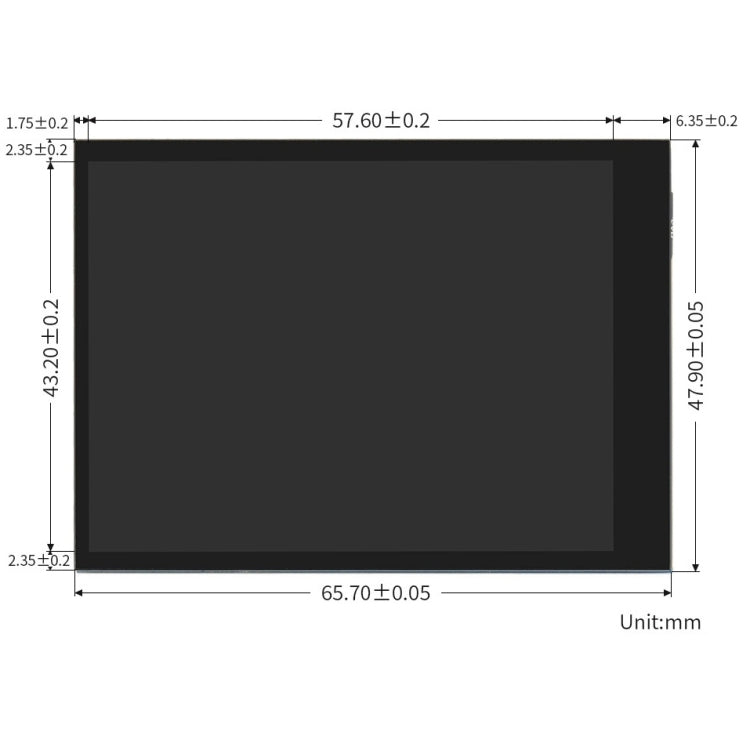

- Display: 2.8 inch fully laminated screen, 480 x 640 pixels, 5-point capacitive touch, toughened glass panel
- Video: Micro HDMI x 1, supports 4K 30fps output
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Power input: 5V
4. Interface Expander Introduction
- Networking: Gigabit Ethernet RJ45; M.2 M KEY, support NVME SSD or communication module
- USB: USB 2.0 x 3

Package list:
1. Touch screen expansion board x1
2. Screws pack x1
3. Interface expander x1
