WAVESHARE 1.8inch 160x128 Colorful Display Module for Mmicro:Bit,65K Colors

Name: WAVESHARE 1.8inch 160x128 Colorful Display Module for Mmicro:Bit,65K Colors
Brand: PMC Jewellery
SKU: DIY1219
Price: 579.00 ZAR
Availability: InStock

R 579.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

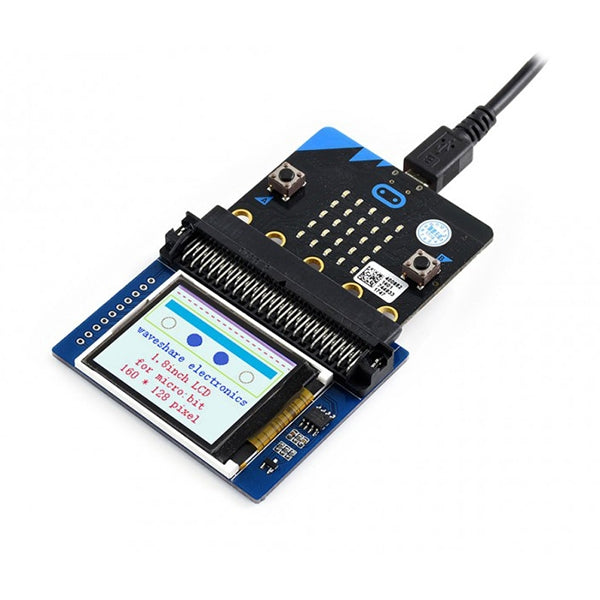

1. micro:bit edge connector, directly pluggable
2. Embedded driver ST7735S, supports 65K colors
3. Onboard SRAM 23LC1024, used as display cache, no more out of memory
4. SPI interface, takes up only a few IO pins
5. Backlight adjustment via PWM

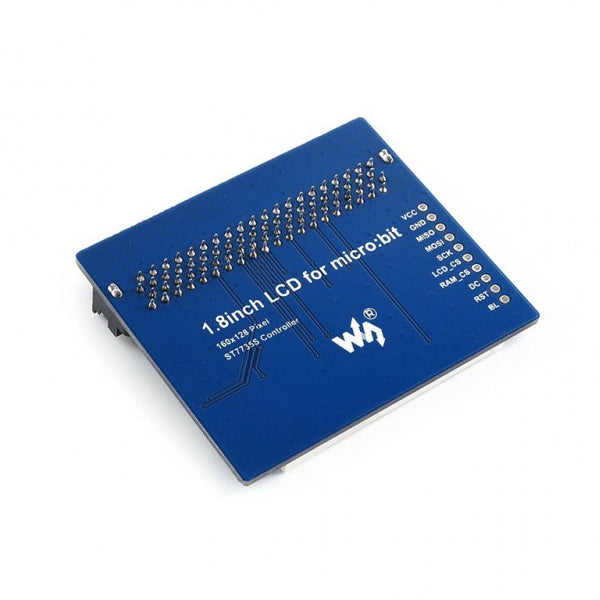

6. Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
7. Driver: ST7735S
8. Resolution: 160x128
9. Color display: RGB, 65k colors
10. Operating voltage: 3.3 v
11. Dimension: 61 x 51.5mm
