Description

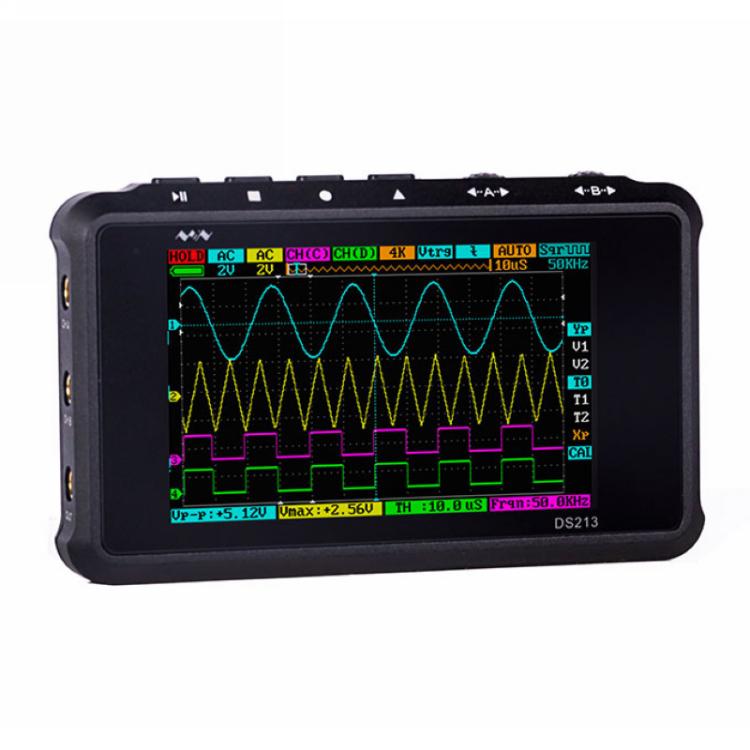

Mini Handheld Digital Storage Four-channel Automobile Maintenance Oscilloscope (DS213) is a handheld testing tool designed for automobile maintenance. It provides real-time waveform analysis and measurement capabilities for automotive diagnostics.
- Product Type: Tester Tool
- Compatibility: Automobile Maintenance
- Material: Not specified
- Key Feature: Handheld design
- Intended Use: Everyday use
- Category: Test Equipment
- Main Control CPU: ARM Cortex M32
- FIFO and Control: FPGA
- ADC: HWD9288-100

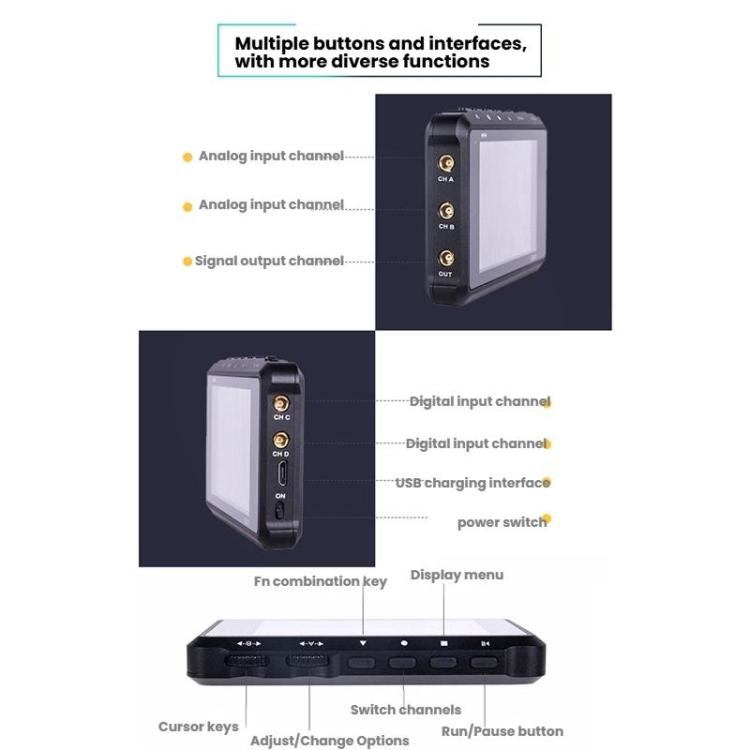

- Number of Analog Channels: 2 (CH_A, CH_B)
- Number of Digital Channels: 2 (CH_C, CH_D)
- Number of Calculation Channels: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] [CH_D]
- Vertical Sensitivity: 10mV-10V/div (x1 probe); 100mV-100V/div (x10 probe)
- Vertical Resolution: 8 bits
- Memory Depth: 4 channels 4*4K
- Input Coupling Mode: DC, AC
- Input Voltage (MAX): 40Vpp (x1 probe); 400Vpp (x10 probe)
- Soft Trigger Type: Positive and negative edge trigger, pulse width trigger, logic trigger
- Trigger Mode: Automatic, standard, single, instant scan
- Trigger Source: CH_A, CH_B, CH_C, CH_D
- Signal Source: Square wave: 10Hz to 8MHz, 20 levels of 3Vpp signal source
- Sine wave, triangle wave, sawtooth wave: 10Hz to 20KHz, 11 levels of 3Vpp signal source
- File Storage Capacity: Built-in 8M USB disk
- File Storage Format: BMP, BUF, CSV

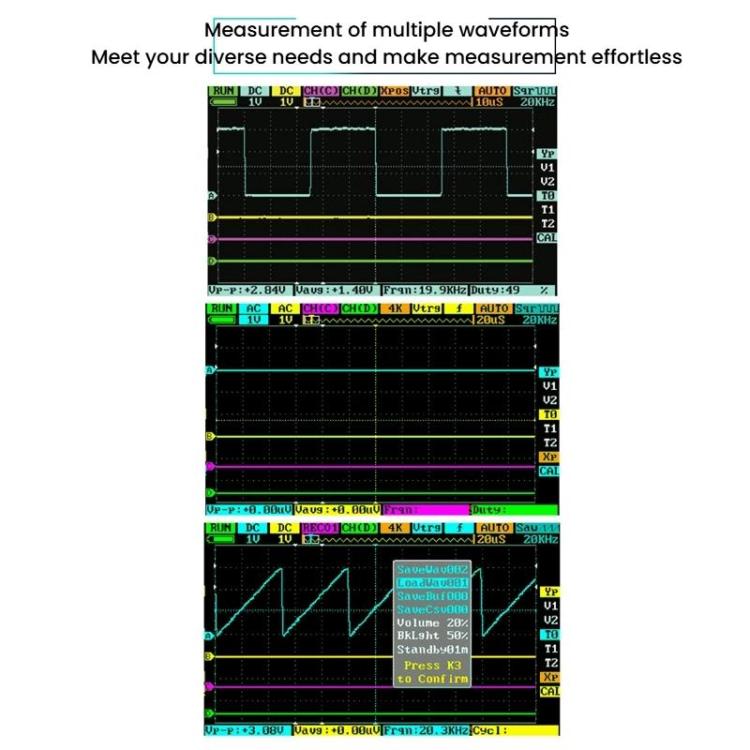

- Automatic Measurement Type: Peak-to-peak value, average value, effective value, frequency, period, pulse width, duty cycle
- Cursor Measurement: Time value, amplitude value
- 4-Line Display: 1 line: CH_A, HIDE; 2 lines: CH_B, HIDE; 3 lines: CH_C, REC_1, REC_2, REC_3, REC_4, HIDE; 4 lines: CH_D, [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] [CH_D], HIDE
- Sampling Mode: Real-time sampling
- Sampling Rate: 100M Sa/s
- Battery Power Supply: 1000mAh

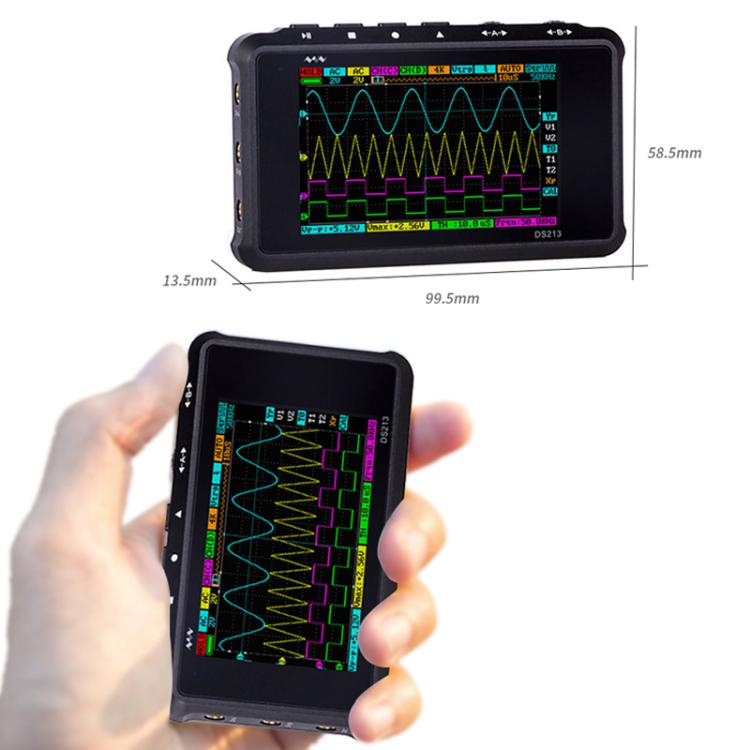

- Dimensions: 99.5 x 58.5 x 13.5 mm
- Weight: 129 g
- Packing List: Oscilloscope host x 1, Oscilloscope probe x 1 (x1), Oscilloscope probe x 1 (x10), L-type hexagonal screwdriver x 1, micro-USB charging cable x 1
