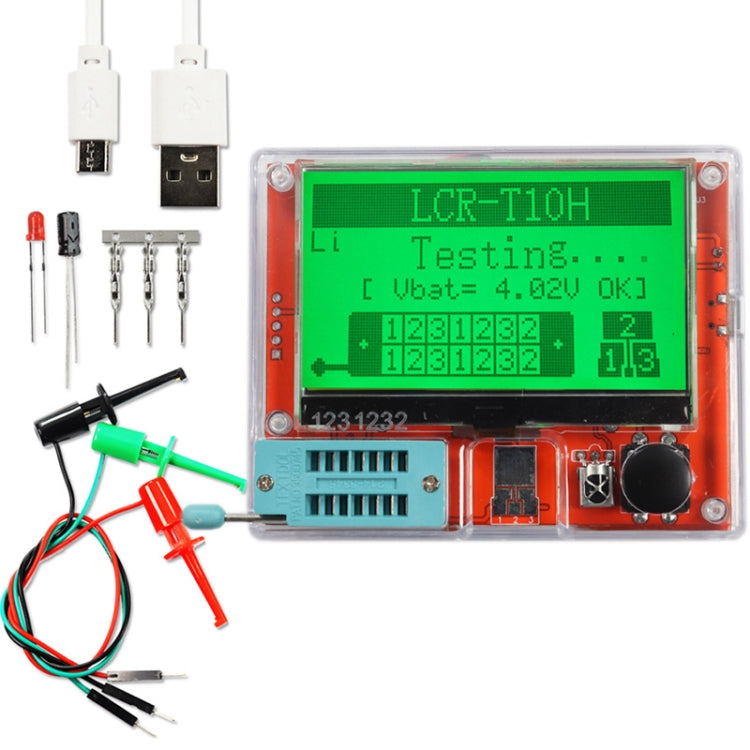

LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Built Lithium Battery

1. Made of high-quality materials, durable and practical.
2. Small size, simple application and easy installation.
3. Efficient and stable performance, long service life.
4. It can automatically identify the pin position and display it as a graphic. The large-screen graphic display is easy to read and observe.
5. Wide range of applications, with infrared waveform display and infrared receiving indication.
6. Easy to use, just place the component in the test area and press the "Start" button. Start automatic measurement
7. Can test related parameters of diodes, transistors, resistors, capacitors and inductors
8. Able to test transistors, MOS tubes, thyristors, Darlington tubes, and IGBTs (note: high-power thyristors and IGBTs may not be tested accurately), and can automatically identify the foot position and display it graphically
9. Can test the encoding value of the infrared remote control (only supports NEC format)

Parameter:
1. Lithium battery power supply: 3.7V
2. Working current: 50ma
3. Capacitance: 25pF-100mF
4. Resistance: 0.01-50MΩ
5. Inductance: 0.01mH-20H
6. Battery: 0.1-4.5V

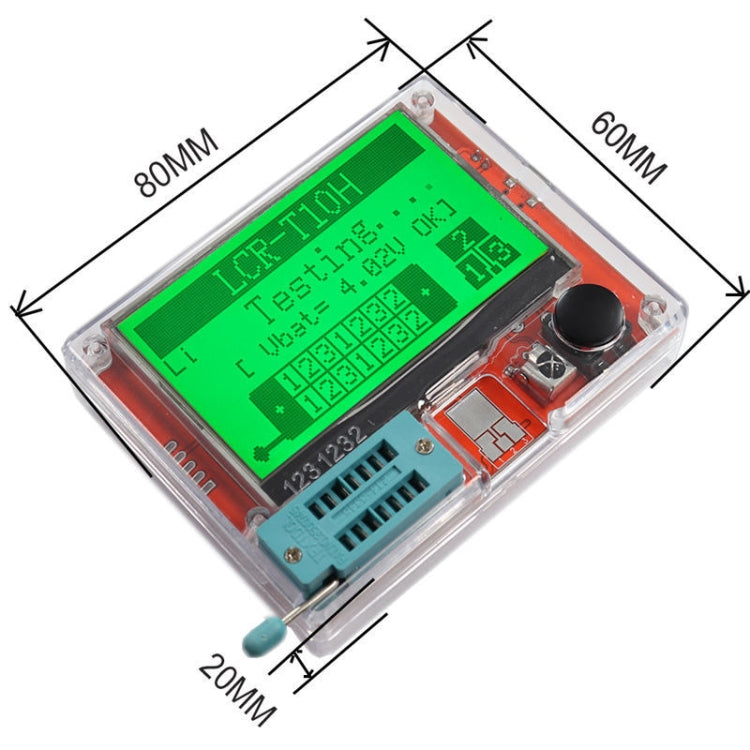

7. Dimensions: 80 x 60 x 20mm

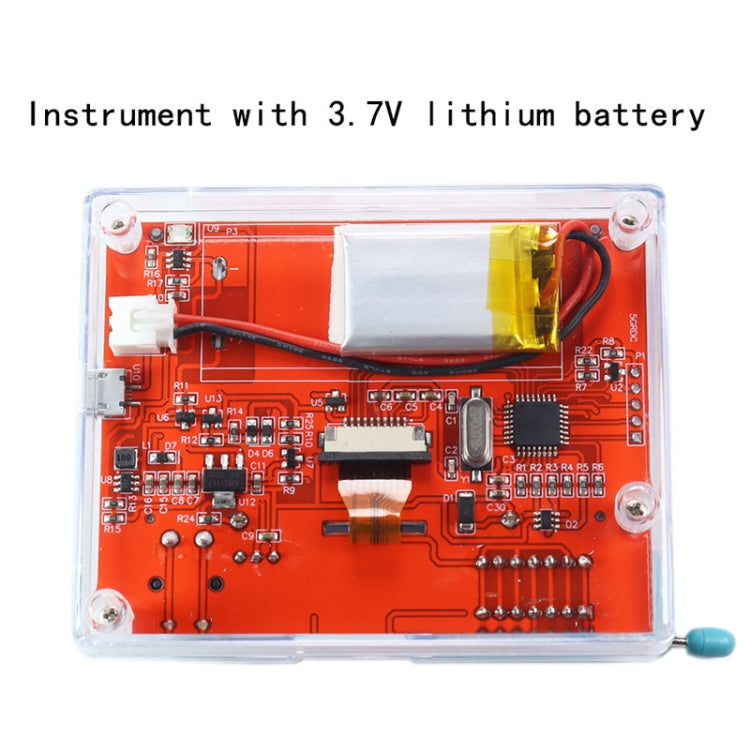

8. Power supply method: rechargeable lithium battery (3.7V 300mAH)/2 AA batteries (optional style)

Note: The capacitor must be discharged before testing, otherwise the instrument will be directly damaged. This instrument is an active instrument. Do not use this instrument to measure live circuit boards, as it may cause damage to the circuit board and instrument.
