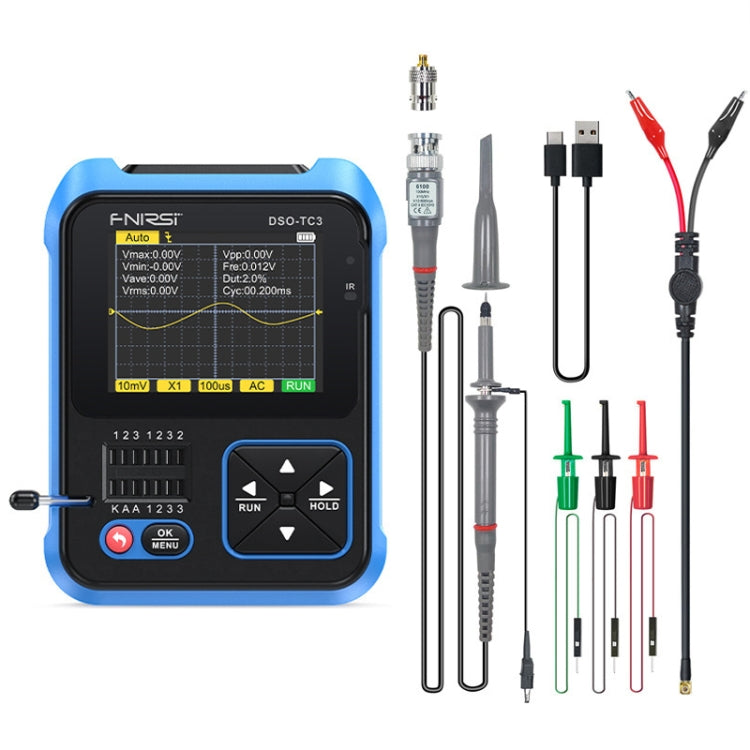

FNIRSI 3 In 1 Handheld Digital Oscilloscope LCR Transistor Tester, Specification: Upgrade

Name: FNIRSI 3 In 1 Handheld Digital Oscilloscope LCR Transistor Tester, Specification: Upgrade
Brand: FNIRSI
SKU: TBD0604561402
Price: 1489.00 ZAR
Availability: InStock

R 1,489.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Display: 2.4-inch TFT colour screen, LED backlighting
2. Supply voltage: built-in 1500mAh rechargeable lithium battery
3. Charging specification: USB Type-C, +5V
4. Product volume: 79x103x31mm
5. Real-time sampling rate: 10MSa / s
6. Analogue bandwidth: 500Khz
7. Input impedance: 1 milliohm
8. Coupling method: AC/DC
9. Test voltage range: 400V
10. Vertical sensitivity: 10mV-10V
11. Horizontal time base range: 1us-10s
12. Trigger mode automatic: normal single
13. Trigger type: rising edge/falling edge
14. Compact body, simple modelling, easy to use, to meet the measurement routine
15. Automatic identification and measurement of various transistors, including NPN and PNP transistors, N-channel and P-channel FETs, junction FETs, diodes, dual-diode thyristors, etc., as well as resistors, inductors, capacitors and other passive components
16. Built-in 1500mAh high-capacity lithium battery, power supply continuous operation without isolation transformer, safer to use
17. 2.4-inch anti-see-through high-resolution display, allowing you to read clearly even in bright sunlight
18. One-piece folding, placed in a stable support, does not take up space
19. Size: 79x103x31mm

Standard:
- DSO-TC3 Tester x 1
-Type-C charging cable x 1
-Common probe x 1
-Test Hook x 3

Upgrade:
-DSO-TC3 Tester x 1
-Adaptor x 1
-P6100 High Voltage Probe x 1
-Type-C charging cable x 1
-Normal Probe x 1
-Test Hook x 1
