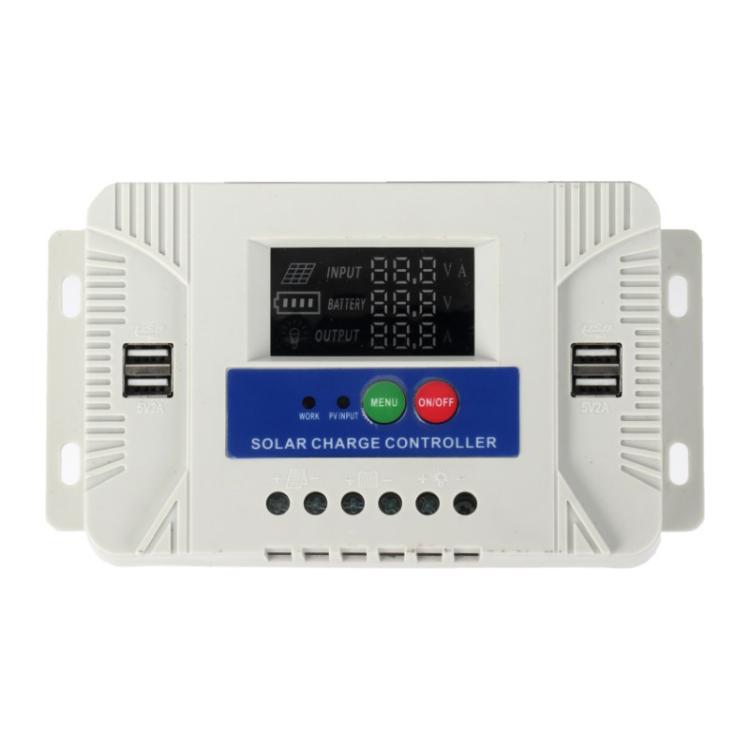

30A 12V 24V Setup-Free Color Screen Luminous Display Solar Controller PV Solar Charge Controller

The 30A 12V 24V Setup-Free Color Screen Luminous Display Solar Controller is designed to manage solar charging for 12V and 24V systems. It is suitable for various types of lead-acid and lithium batteries, providing efficient charging management in solar power applications.

• Product Type: Solar Charge Controller
• Compatibility: 12V and 24V systems
• Material: Not specified
• Key Feature: Luminous display
• Intended Use: Everyday use
• System Voltage: 12V/24V automatic adaptation
• USB Output: 2-channel USB output, 5V/2A (max)
• Standby Current: Less than 10mA
• Operating Temperature: -35 to 60 degrees Celsius
• Weight: Approximately 290g
• Size: Approximately 18.5 x 9.5 x 4.1 cm
• Charging Management: Complete 3-stage charging management
• Protection Features: Built-in overcurrent, short circuit, open circuit, and reverse connection protection (self-recovery type)
• Additional Features: Large LCD display, adjustable charging and discharging parameters, power failure memory function, dual MOS anti-backflow circuit, ultra-low heat generation
• Installation Recommendations: Install close to the battery to avoid voltage drop; use photovoltaic panels only as charging source; ensure well-ventilated installation surface
• Warm Tips: Screen display of battery voltage may have slight error
