10pcs 3.7V Lithium Battery Protection Board Polymer Overcharge and Overdischarge Protection Board(As Show)

Name: 10pcs 3.7V Lithium Battery Protection Board Polymer Overcharge and Overdischarge Protection Board(As Show)
Brand: PMC Jewellery
SKU: TBD0603760901A
Price: 209.00 ZAR
Availability: InStock

R 209.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Parameter:
1. After connecting, it needs to be charged for a while before outputting
2. Charging voltage: DC4.2V
3. Continuous discharge current: 4A
4. Overcharge detection voltage: 4.28V
5. Overcharge detection delay time: 1S
6. Overcharge recovery voltage: hysteresis overcharge detection voltage 0.2V
7. Over-discharge detection voltage: 2.8V
8. Over-discharge detection delay time: 128ms
9. Over-discharge recovery voltage: 3.0V
10. Overcurrent detection voltage: 200mv
11. Overcurrent detection current: 4A
12. Delay time of overcurrent detection: 12ms megohm
14. Working temperature range: -40 to 50 degrees Celsius

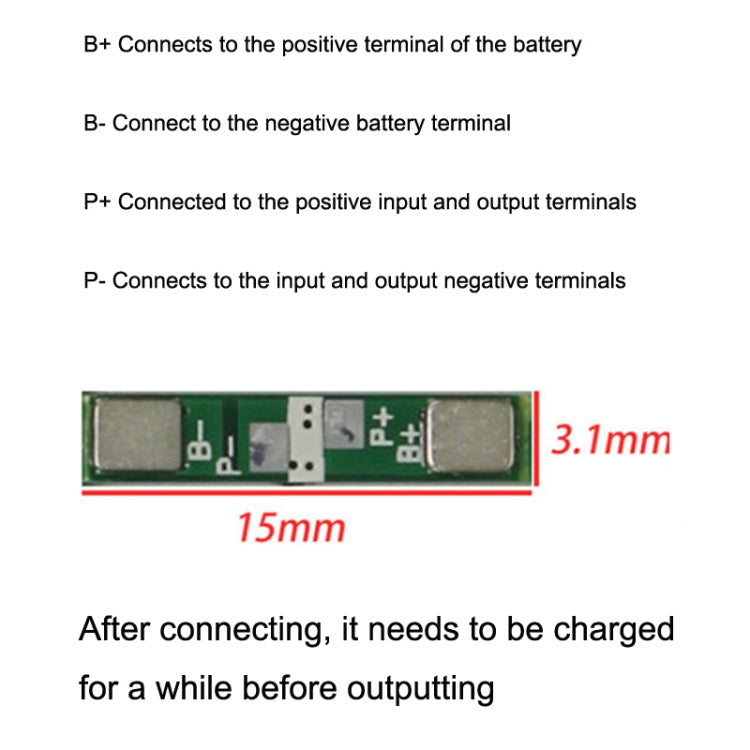

15. Size: 15x3.1mm

Kind tips:
1. Because (lithium battery protection board) belongs to the particularity of semi-finished products in electronic products; be sure to understand the wiring diagram before assembly; avoid wrong wiring
2. Incorrect wiring or unintentional contact of wire ends with components may cause damage
