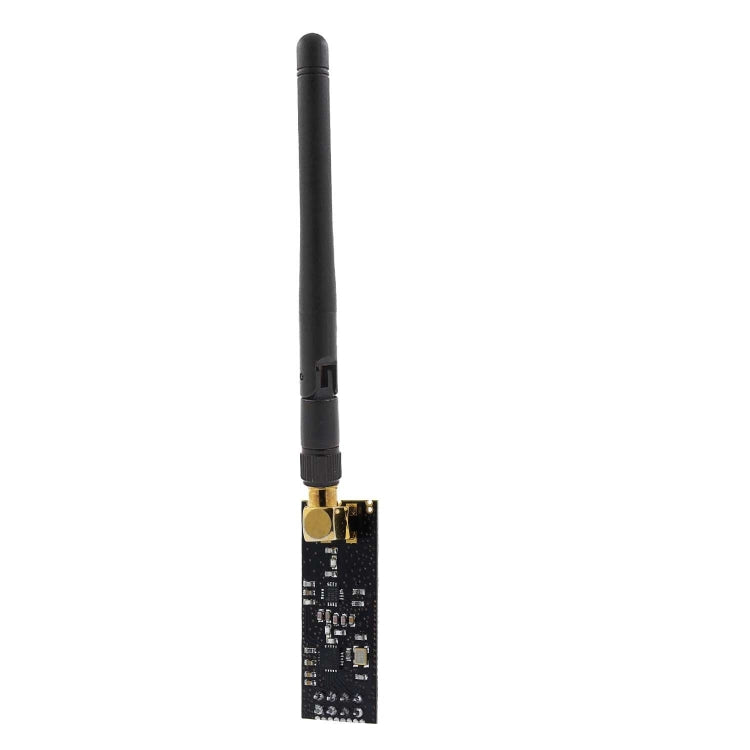

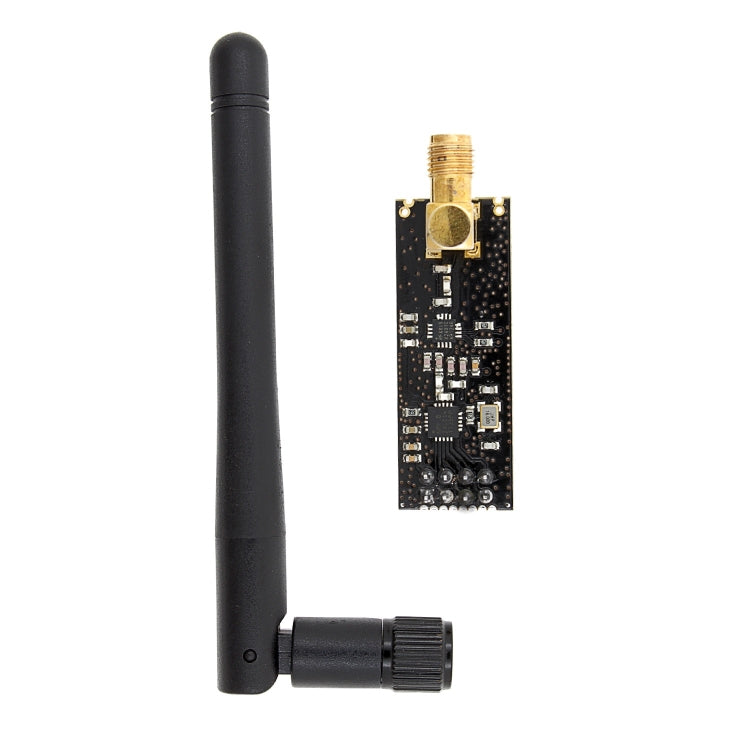

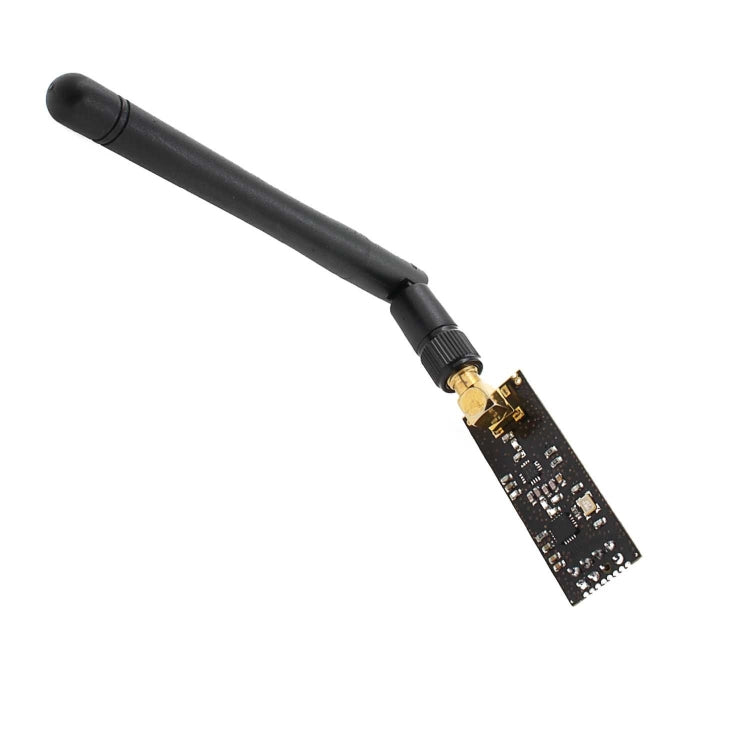

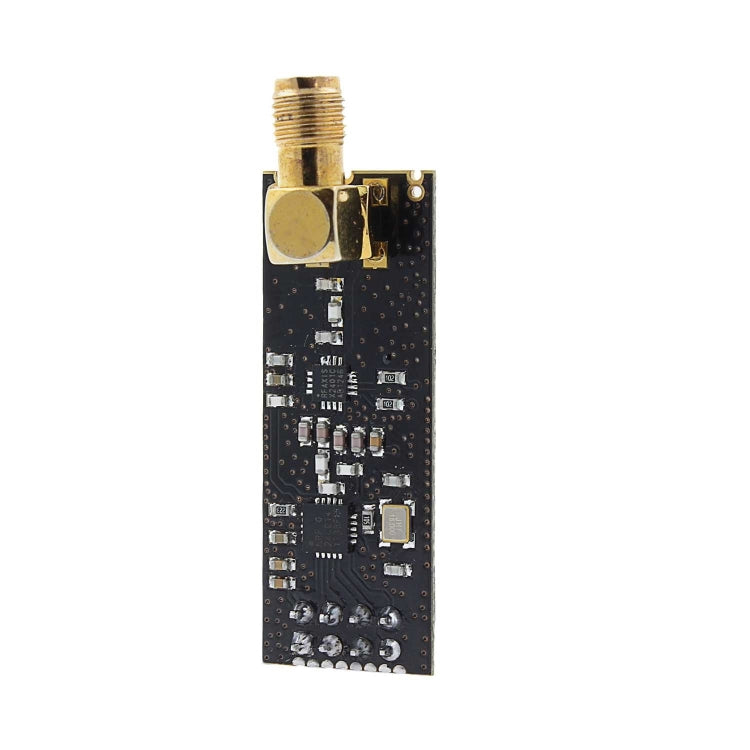

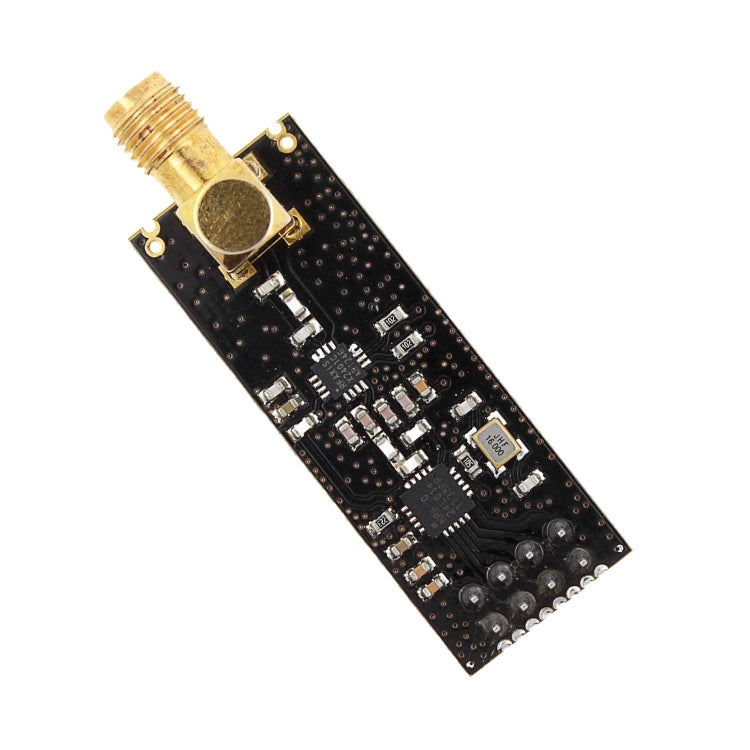

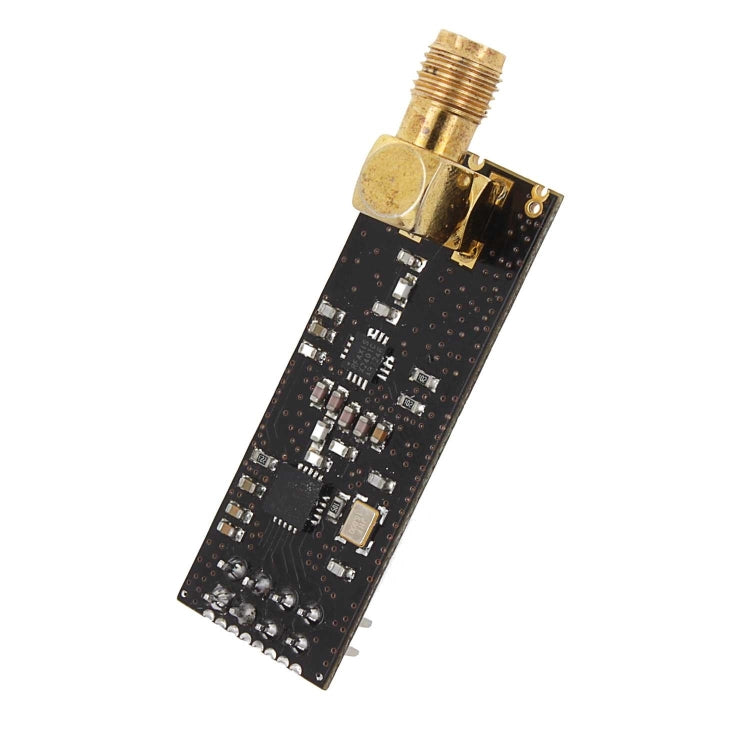

LDTR-WG0234 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module with Antenna (Black)
LDTR-WG0234 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module with Antenna (Black)
Sale
Sold out
Pre-order
Regular price
R 209.00
Regular price
Sale price
R 209.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Other Accessories
• Compatibility: NRF24L01P
• Material: Not specified
• Key feature: Long-distance data transmission
• Color/Variant: Black
• Intended use: Everyday use
• Category: Arduino & SCM Supplies

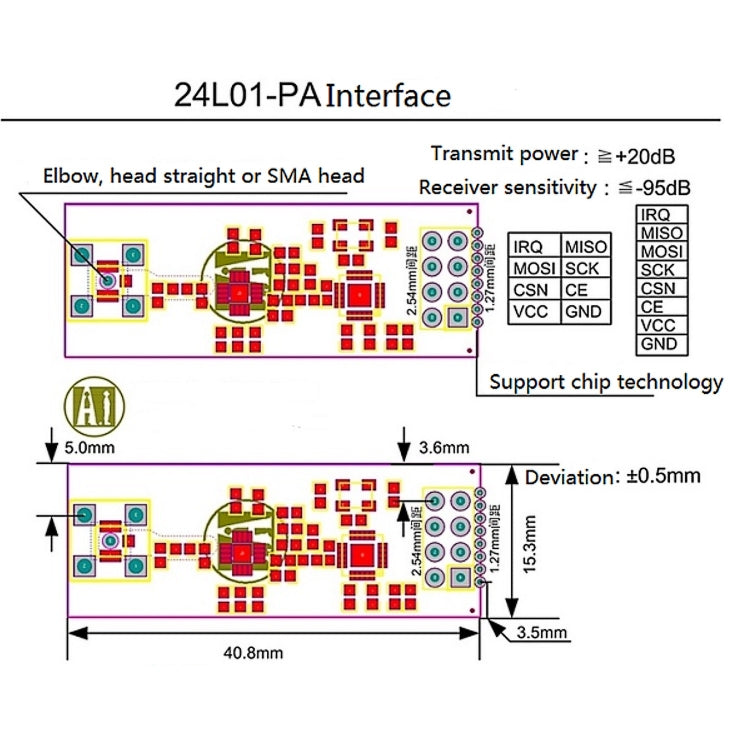

1. NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free that can be point-to-point applications or be composed of a star network. 2. Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expand. 3. RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices. 4. NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded. 5. Working Voltage: 3.0~3.6V, (recommended 3.3V); 6. Maximum power: 20dBm; 7. Transmit mode operating current (peak): 115mA; 8. Operating current receive mode (peak): 45mA; 9. Power-down mode current: 4.2uA 10. Package List - 1 x Wireless module - 1 x Antenna
• Compatibility: NRF24L01P
• Material: Not specified
• Key feature: Long-distance data transmission
• Color/Variant: Black
• Intended use: Everyday use
• Category: Arduino & SCM Supplies
1. NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free that can be point-to-point applications or be composed of a star network. 2. Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expand. 3. RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices. 4. NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded. 5. Working Voltage: 3.0~3.6V, (recommended 3.3V); 6. Maximum power: 20dBm; 7. Transmit mode operating current (peak): 115mA; 8. Operating current receive mode (peak): 45mA; 9. Power-down mode current: 4.2uA 10. Package List - 1 x Wireless module - 1 x Antenna
