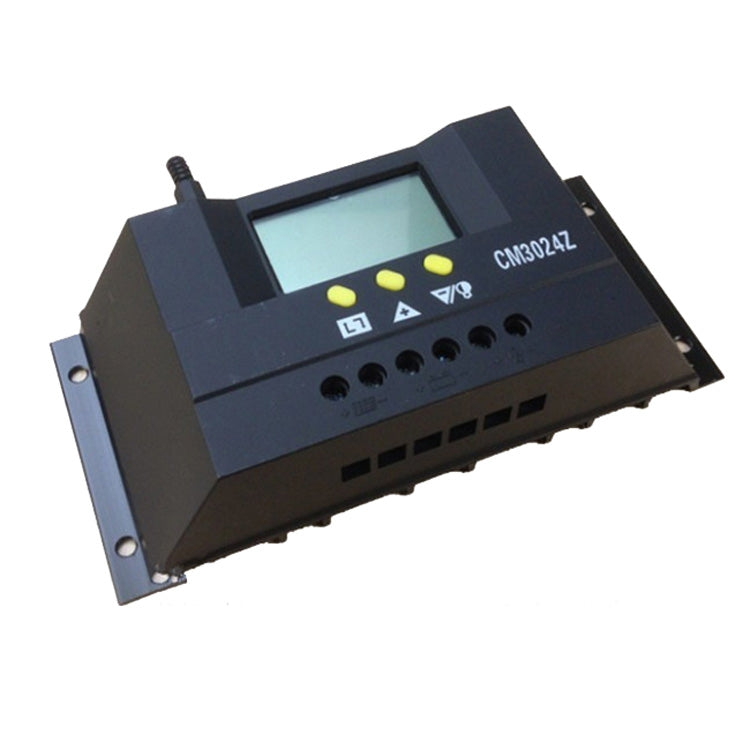

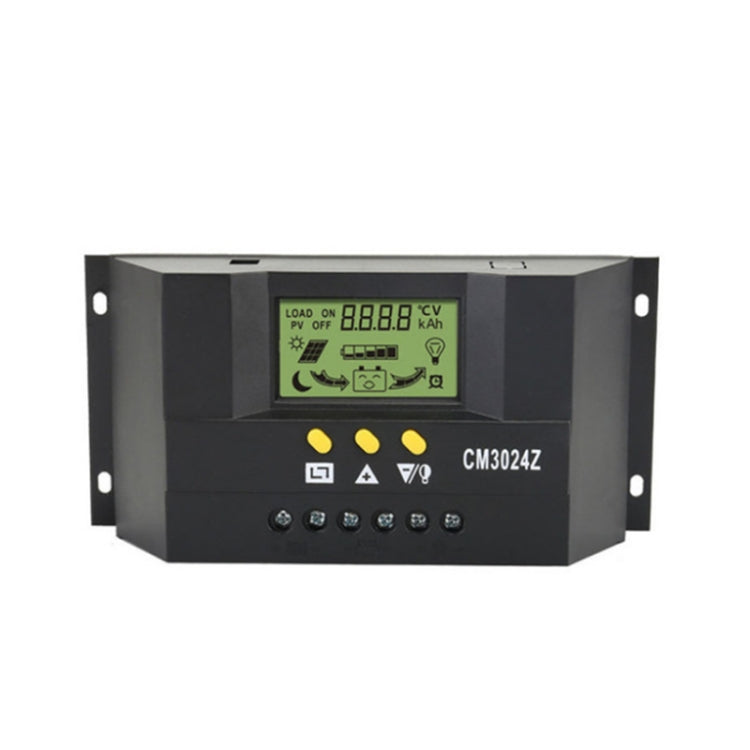

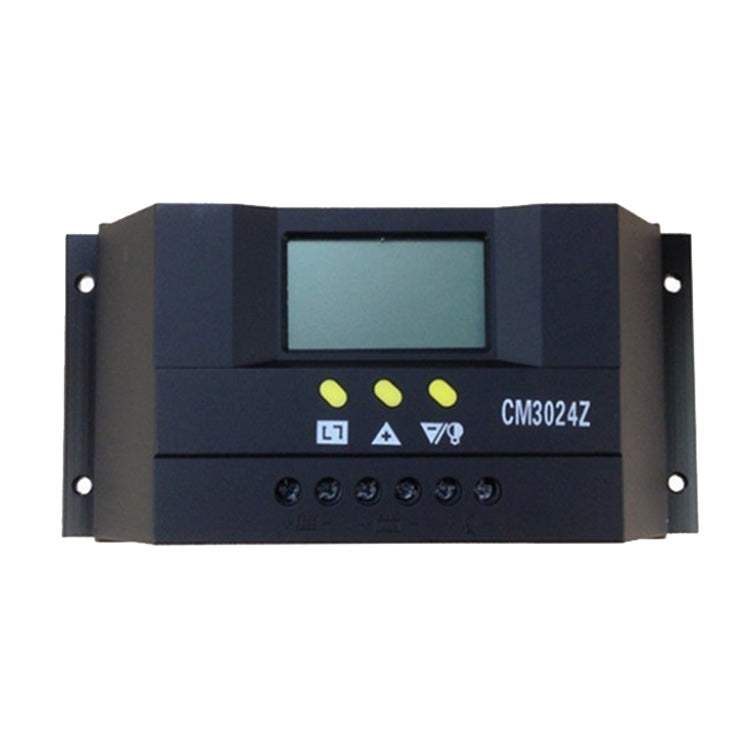

CM3024Z 12V24V 30A Solar Controller LCD Display Solar Charge Controller
CM3024Z 12V24V 30A Solar Controller LCD Display Solar Charge Controller
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R190.35/mo 3 months
- R96.25/mo 6 months
- R50.8/mo 12 months
- From R190.35/month over 3 months, or as low as R50.8/month over 12. Total repayable over 12 months: R609.6. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

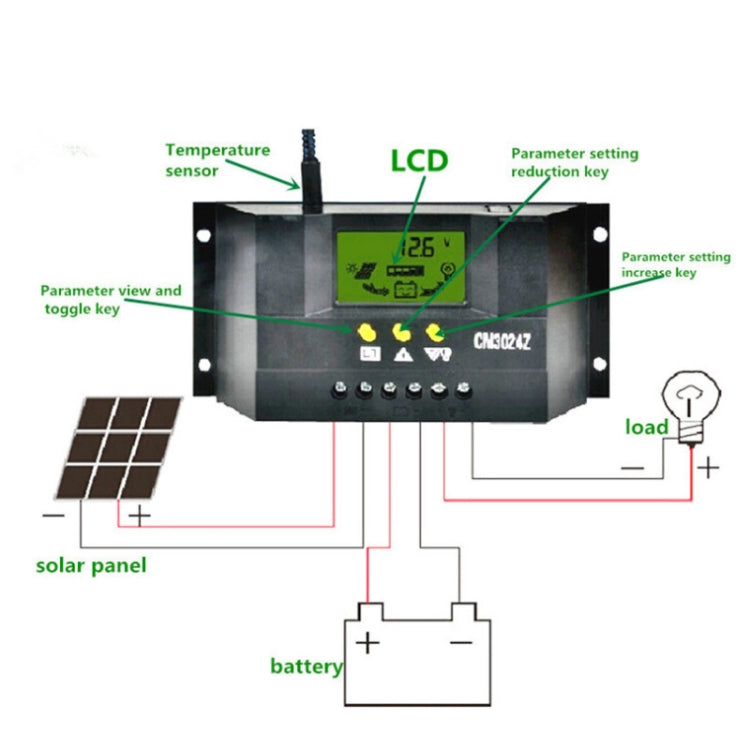

The CM3024Z is a solar charge controller designed for 12V and 24V systems. It regulates the charging and discharging of solar energy, making it suitable for everyday use in solar power applications.
- Product Type: Solar Charge Controller
- Compatibility: 12V/24V systems
- Rated Voltage: 12/24V lead-acid battery voltage
- Maximum Charge and Discharge Current: 30A
- Solar Panel Input Voltage Range: Maximum 18V-450W/36V-900W
- Load Working Time Setting: 1-24 hours adjustable
- Charging Mode: PWM
- Overvoltage Protection: 17V/34V
- Fully Disconnected Voltage: 13.7V/27.4V
- Undervoltage Disconnect Voltage: 10.5V/21V
- Over-Discharge Recovery Voltage: 12.2V/24.4V
- Wiring Specifications: Less than or equal to No. 7 AWG (16 square millimeters)
- Working Environment Temperature: -25 to 55 degrees Celsius
- Display: LCD with vivid graphic symbols
- Automatic Recognition of System Voltage Level
- Automatic Temperature Compensation
- Settable Load Working Mode
- Battery Undervoltage Protection
- Overload and Short Circuit Protection
- Simple Key Operation
- Intelligent PWM Charging Method
- Adjustable Charge and Discharge Control Parameters
- Accumulation of Charge and Discharge Ampere Hours
- Battery Reverse Discharge Protection
- Battery Reverse Connection Protection
