Waveshare Infrared Reflective Sensor
Waveshare Infrared Reflective Sensor
Sale
Sold out
Pre-order
Regular price
R 239.00
Regular price
Sale price
R 239.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description

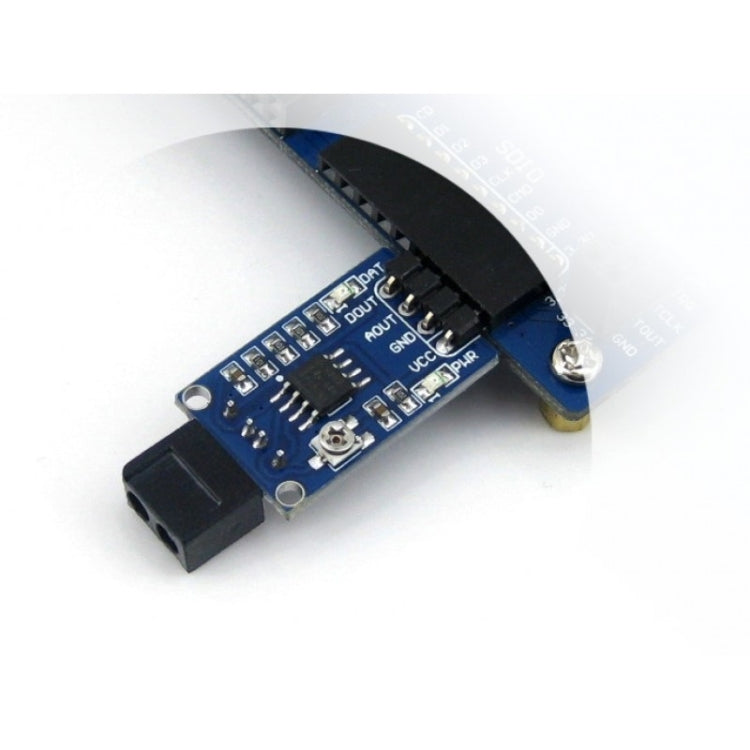

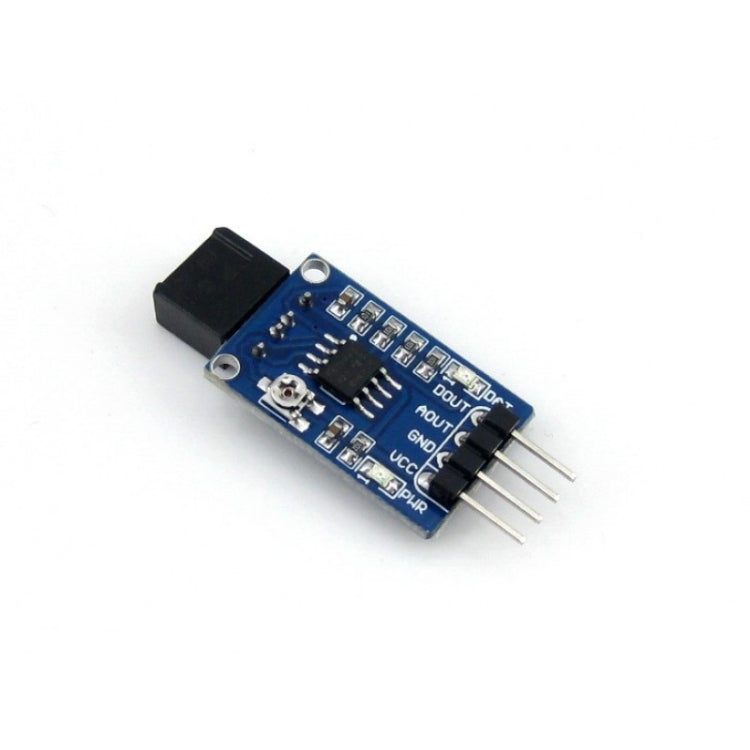

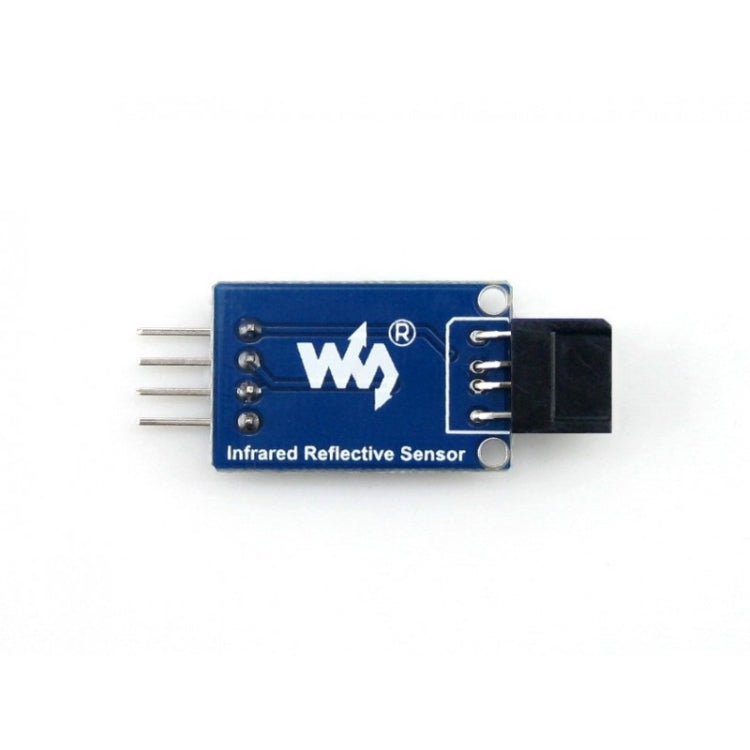

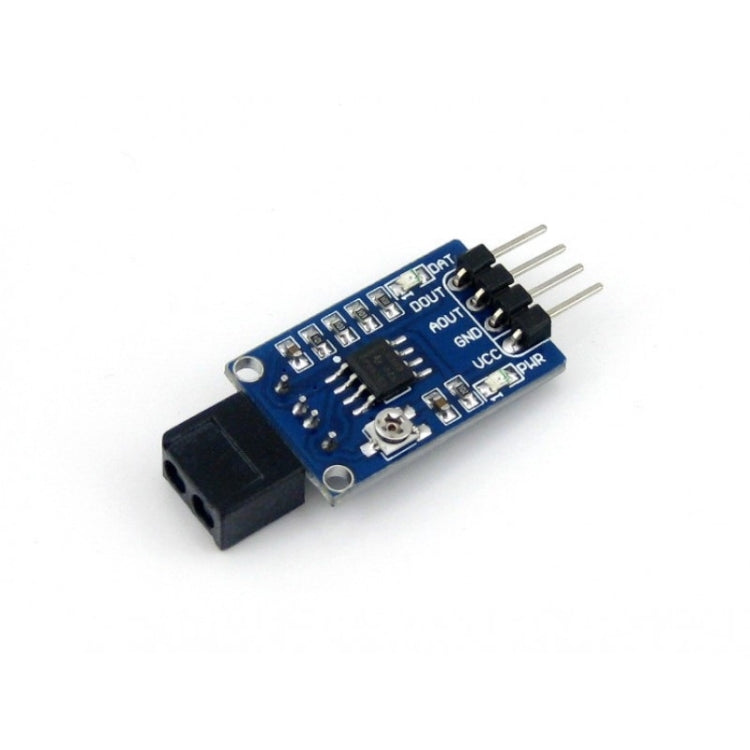

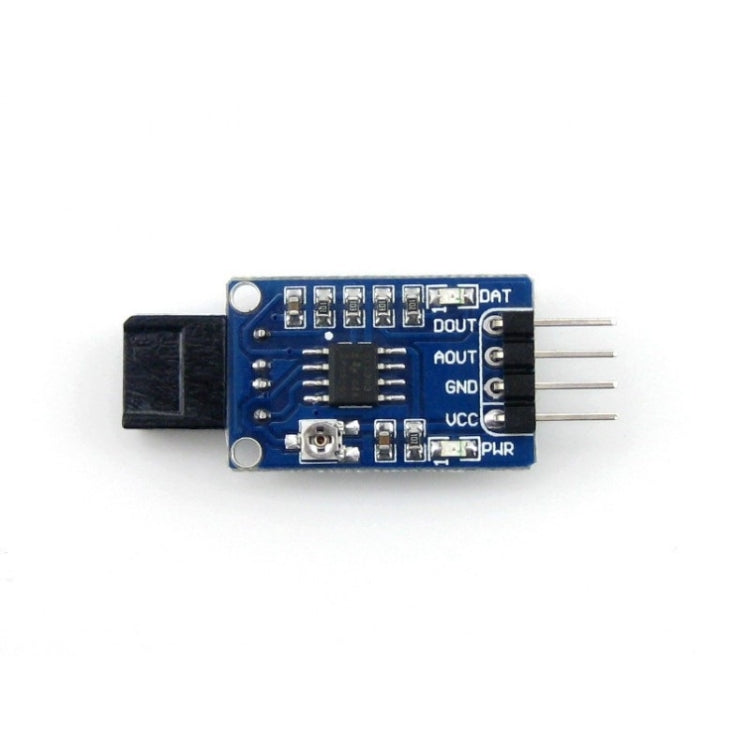

The Waveshare Infrared Reflective Sensor is a reflective infrared transceiver designed for various applications. It is suitable for robot path tracking, obstacle avoidance, and pipeline counting.
- Power supply voltage: 3.0V to 5.3V
- Dimensions: 25mm x 15.9mm
- Mounting hole size: 2.0mm
- Comparator: LM393
- Adjustable sensitivity
- Signal output indicator
- Pinouts:
- VCC: 3.0V to 5.3V
- GND: Power supply ground
- AOUT: MCU.IO (analog output)
- DOUT: MCU.IO (digital output)
- Package contents:
- Infrared Reflective Sensor x1
- 4-pin custom connector jumper wire x1
