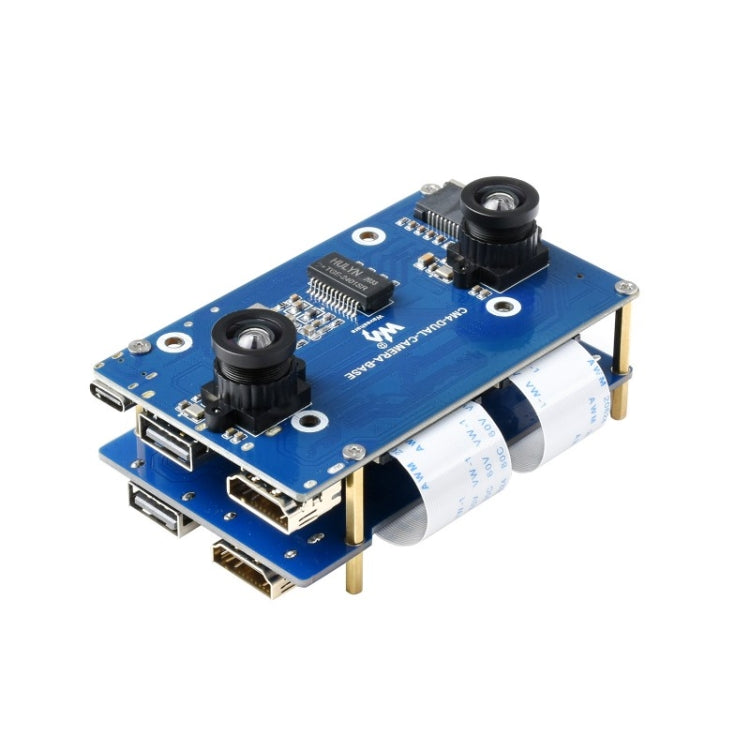

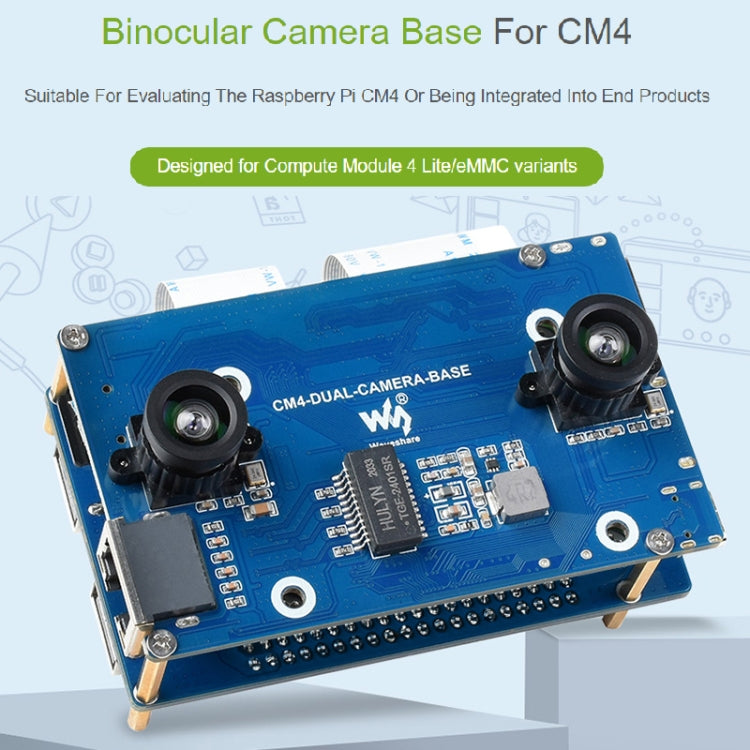

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4

The Waveshare Binocular Camera Base Board is a module designed for the Raspberry Pi Compute Module 4. It enables high-resolution imaging and video output for various applications.

• Product Type: Modules Expansions Accessories
• Compatibility: Raspberry Pi Compute Module 4
• Material: Not specified
• Key Feature: Dual-lens camera with HDMI output
• Intended Use: Everyday use
• Category: Electronics Module Camera Base Board

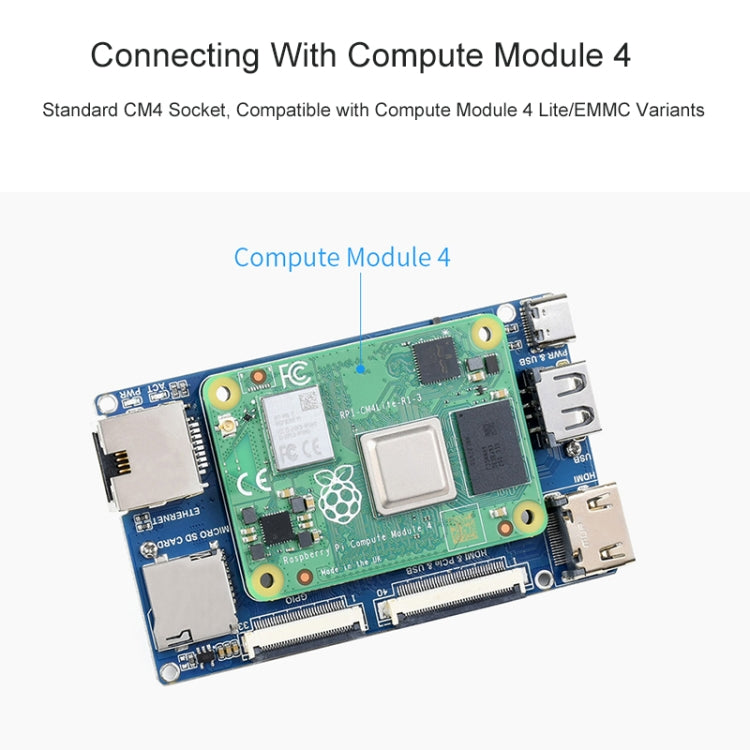

• CM4 Socket: Suitable for all variants of Compute Module 4
• Networking: Gigabit Ethernet RJ45
• USB Ports: USB 2.0 x 1
• FFC Connectors:
  • HDMI-compatible & PCIe & USB FFC connector x 1
  • GPIO FFC connector x 1
• Dual-lens Camera Specifications:
  • Pixels: 8MP
  • Sensor: IMX 219
  • Resolution: 3280 x 2464 (per channel)
  • CMOS Size: 1/4 inch
  • Aperture: F2.4
  • Focal Length: 2.6mm
  • Field of View: 83/73/50 degrees (diagonal/horizontal/vertical)
  • Distortion: Less than 1%
  • Baseline Length: 60mm
• Video Output: HDMI-compatible x 1, supports 4K 30fps output
• Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• Power Input: 5V/2.5A

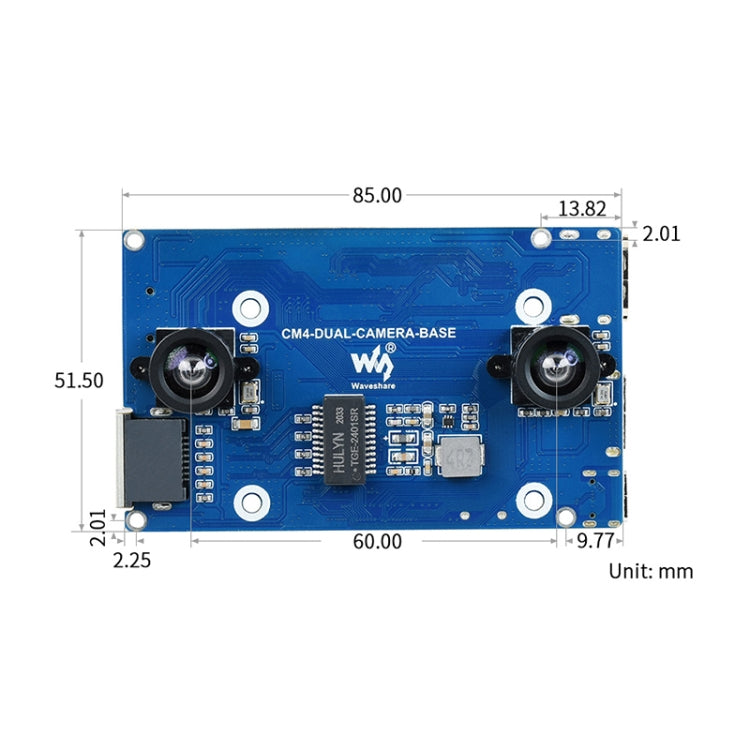

• Dimensions: 85.0 x 51.5mm
• Interface Expander Specifications:
  • USB Ports: USB 2.0 x 3
  • FFC Connectors:
    • HDMI-compatible & PCIe & USB FFC connector x 1
    • GPIO FFC connector x 1
  • Other Connectors:
    • M.2 M KEY x 1, for connecting NVME SSD or communication module
    • Raspberry Pi 40PIN GPIO header x 1
  • Video Output: HDMI-compatible x 1, supports 4K 30fps output
  • Dimensions: 85.0 x 51.5mm
• Package List:
  • Dual camera base x1
  • Screws pack x1
  • Interface expander x1
  • FFC 2PCS x1
