Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module
Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from International Fulfillment Center • Import tax and duties included
Ships from International Fulfillment Center • Import tax and duties excluded
Ships from International Fulfillment Center • Import tax and duties excluded
Description

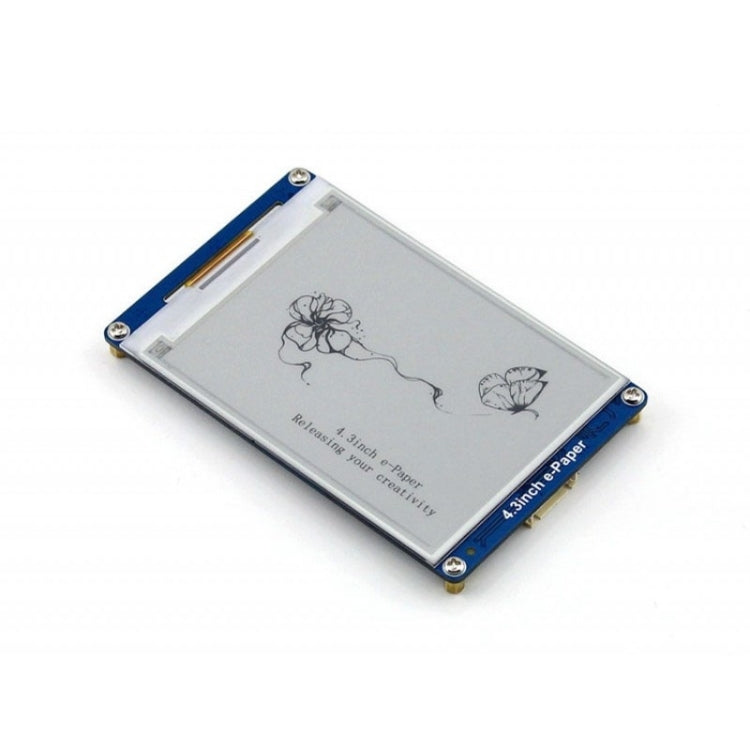

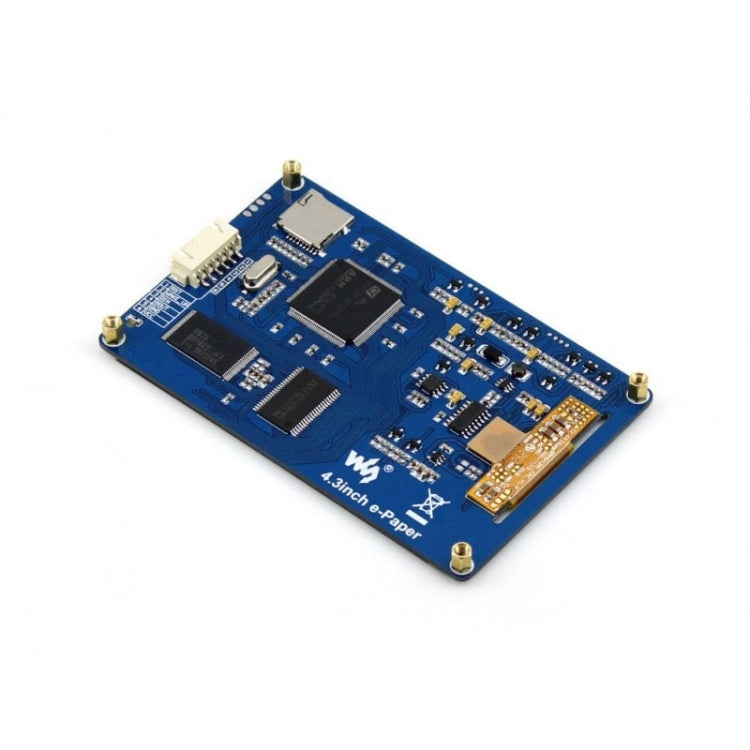

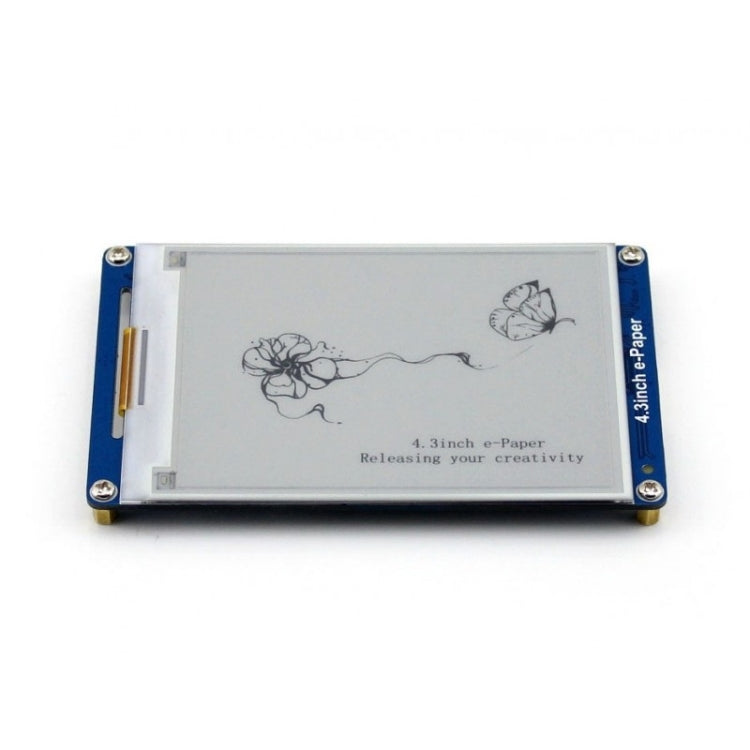

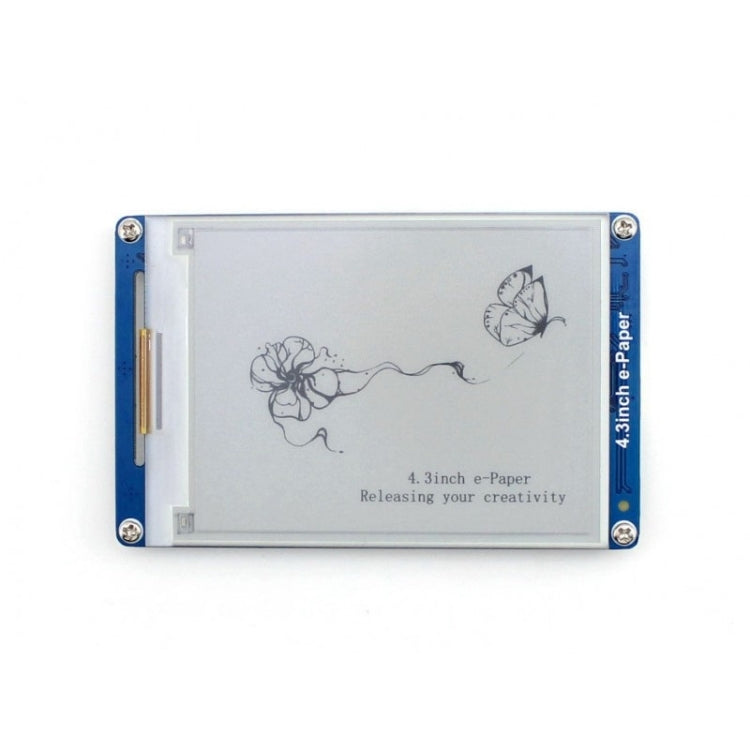

The Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module is a serial interface E-Ink display module designed for various applications. It is suitable for use in e-books, shopping mall POS systems, price labels, and industrial instruments.
- Product Type: Serial Interface E-Ink Display Module
- Screen Size: 4.3 inches
- Resolution: 800 x 600 pixels
- Power Supply: 3.3V to 5V
- Power Consumption: Ultra low power consumption, sleeping current lower than 5mA
- Interface: Serial interface
- Embedded Font Libraries: Supports 32, 48, and 64 dot matrix GBK Chinese fonts and English fonts
- Built-in Storage: 128MB NandFlash, supports external TF card
- Baud Rate: Adjustable, 115200 by default
- Display Levels: 4 grey levels
- Package Contents: 4.3 inch e-Paper UART Module x1, XH2.54 6-pin cable x1

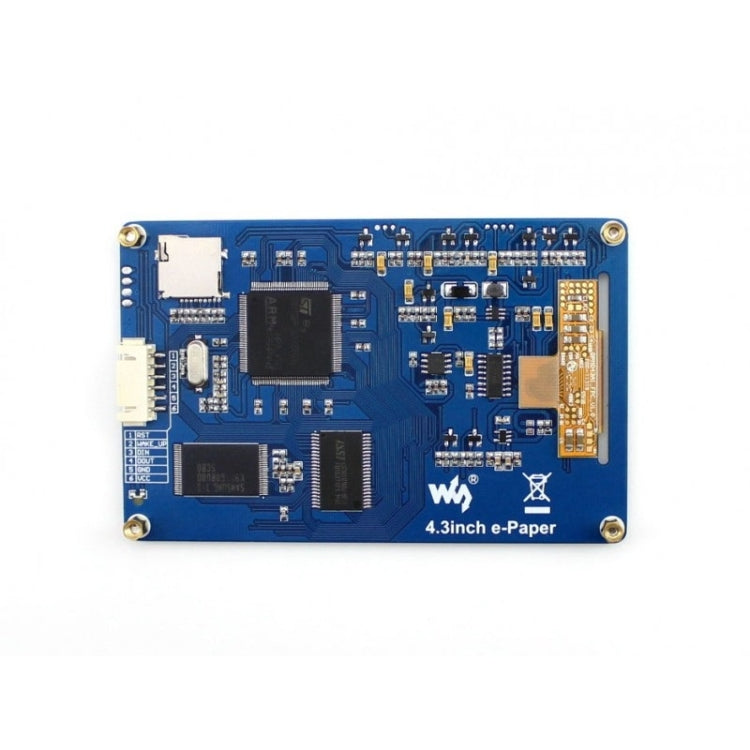

- Pin Definitions: VCC: 3.3V~5.5V, GND: GND, DOU: Serial data out, DIN: Serial data in, WAKE_UP: External wake up, RST: External reset
