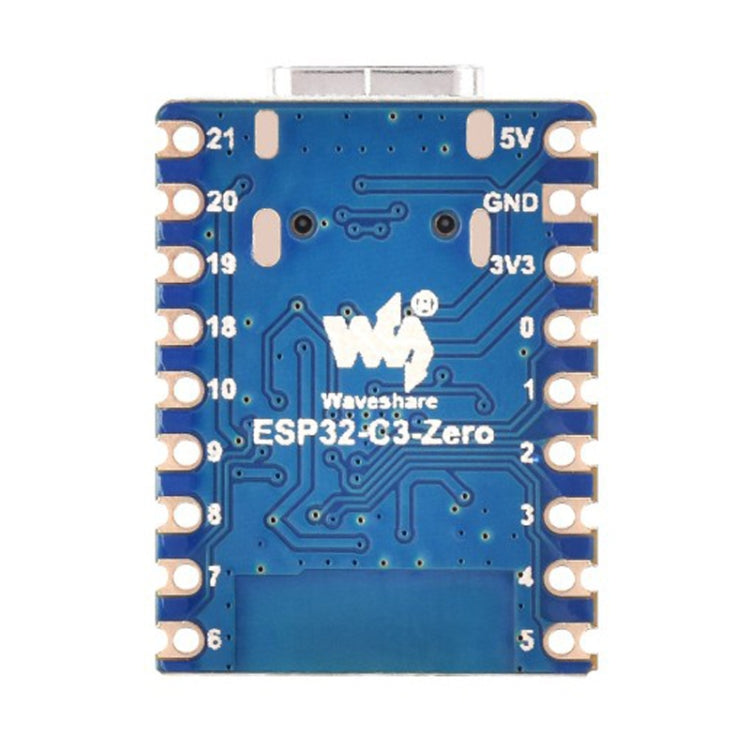

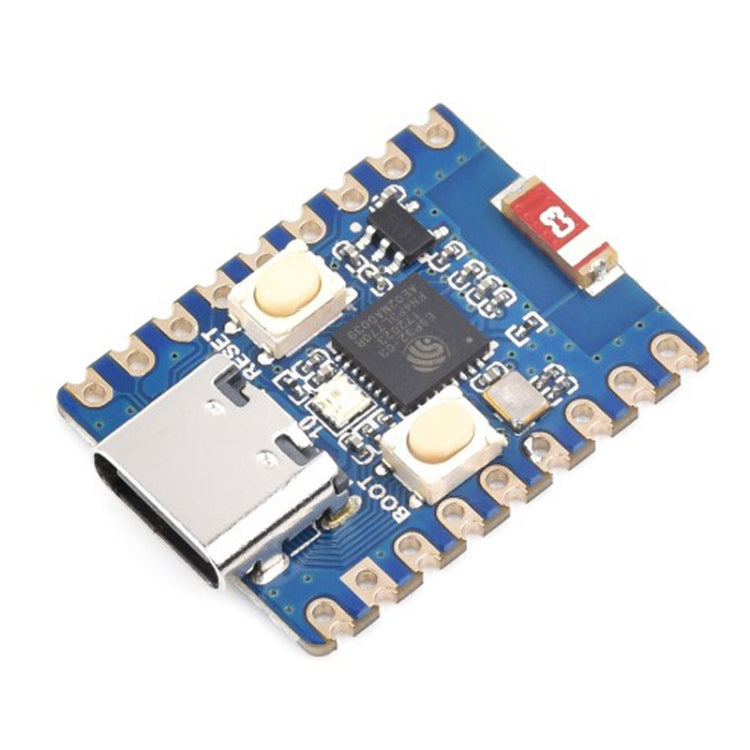

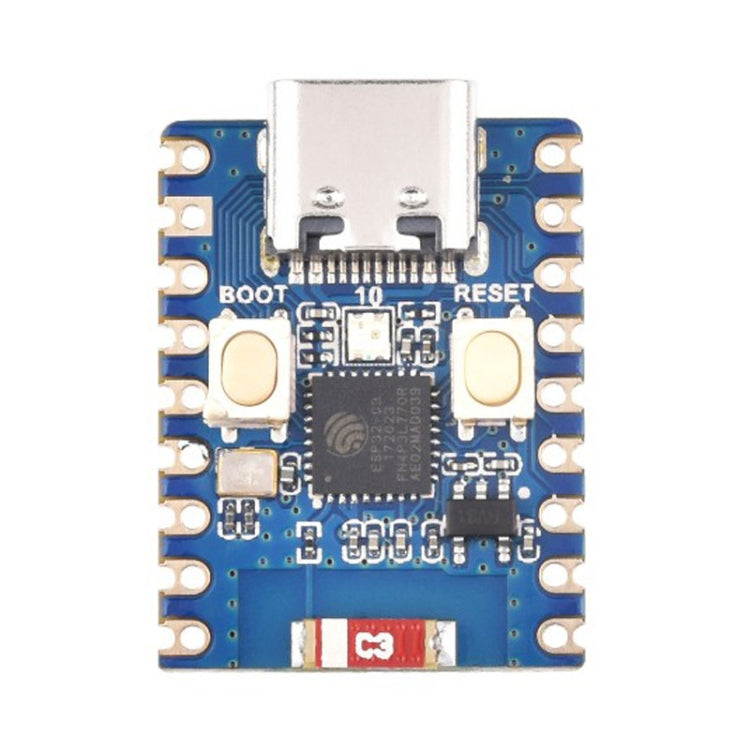

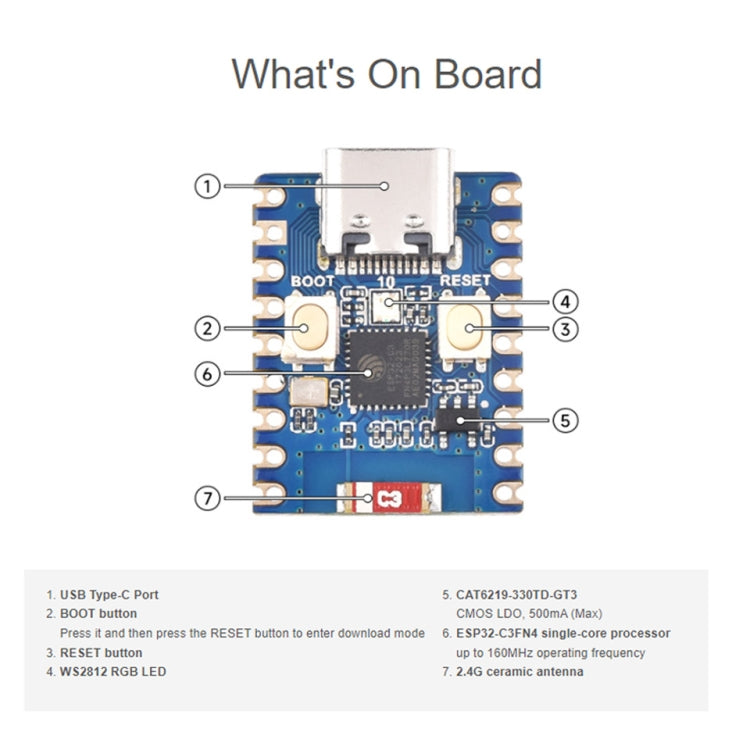

Waveshare 2.4GHz ESP32-C3 Mini Development Board, Based ESP32-C3FN4 Single-core Processor without Header
Waveshare 2.4GHz ESP32-C3 Mini Development Board, Based ESP32-C3FN4 Single-core Processor without Header
Sale
Sold out
Pre-order
Regular price
R 249.00
Regular price
Sale price
R 249.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The Waveshare 2.4GHz ESP32-C3 Mini Development Board is a low-power system on chip (SoC) designed for everyday use. It is suitable for various applications, including IoT projects, due to its integrated Wi-Fi and Bluetooth capabilities.
- Product Type: Development Board
- Compatibility: ESP32-C3
- Processor: RISC-V 32-bit single-core, clocked at up to 160MHz
- Wireless Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)
- Memory: 400KB SRAM, 384KB ROM, 4MB onboard flash memory
- Module Design: Castle-shaped module with on-board ceramic antenna
- Power Management: Flexible clock and module power independent settings
- USB Interface: Integrated USB serial port full-speed controller
- GPIO: 15×GPIO pins with flexible pin configuration
- Communication Interfaces: 3×SPI, 1×I2C, 2×UART, 1×I2S, 2×ADC
- Dimensions: 23.5 x 18mm
- Weight: 2g, 3g
