Waveshare 16-Channel 12-bit I2C Servo Driver HAT B for Raspberry Pi

Name: Waveshare 16-Channel 12-bit I2C Servo Driver HAT B for Raspberry Pi
Brand: WAVESHARE
SKU: DIY0191
Availability: InStock

Sale Sold out Pre-order

R 429.00

Available to Order

Processing time: 1-3 days

Estimated delivery: 6-13 working days

Ships from International Fulfillment Center • Import tax and duties included

SKU: DIY0191

Shipping Included Intl: 6-13 Bus Days 6-Month Warranty 7-Day Returns

Description

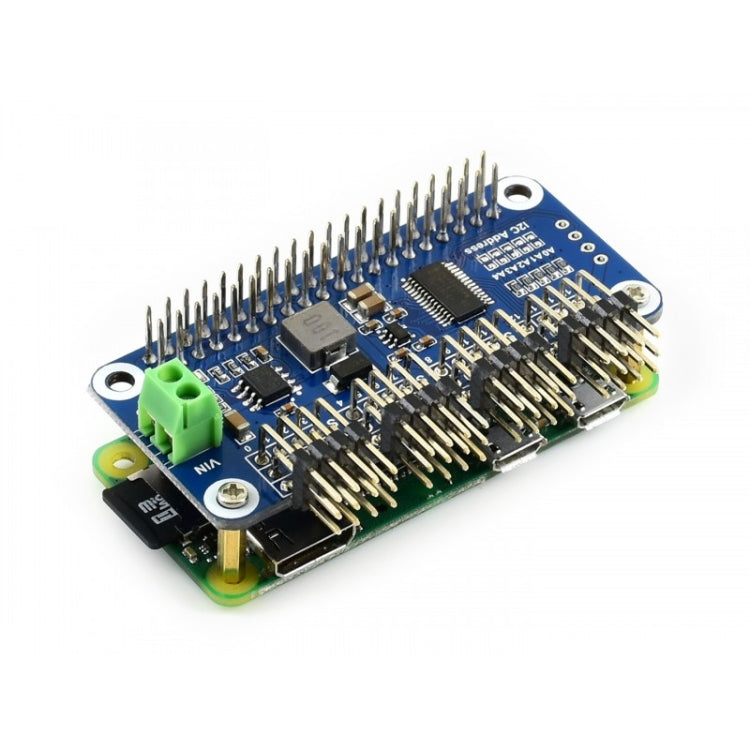

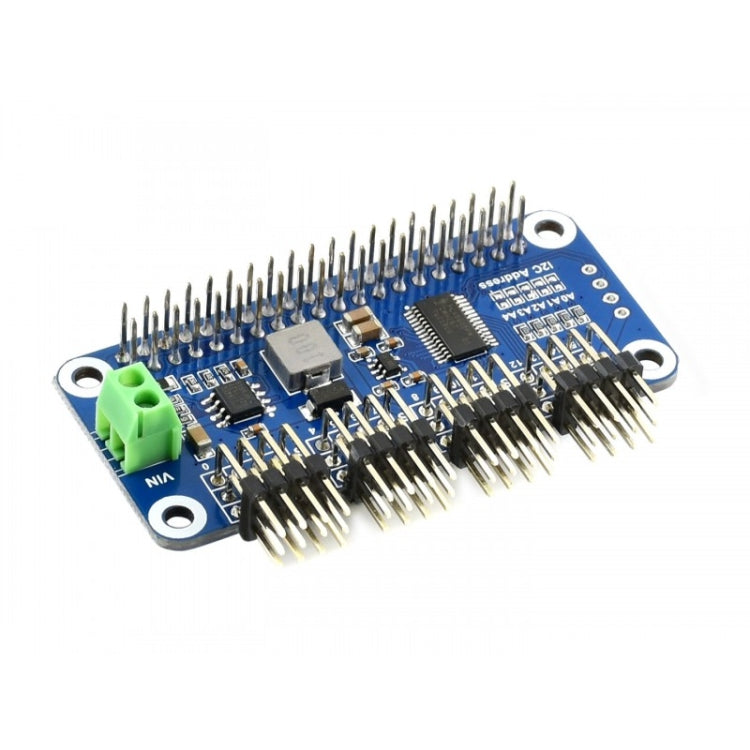

The Waveshare 16-Channel 12-bit I2C Servo Driver HAT B is an electronics module designed to control servos and PWM outputs. It is suitable for applications requiring precise control of multiple servos, such as robotic arms or hexapod walkers.

Product Type: Electronics Module

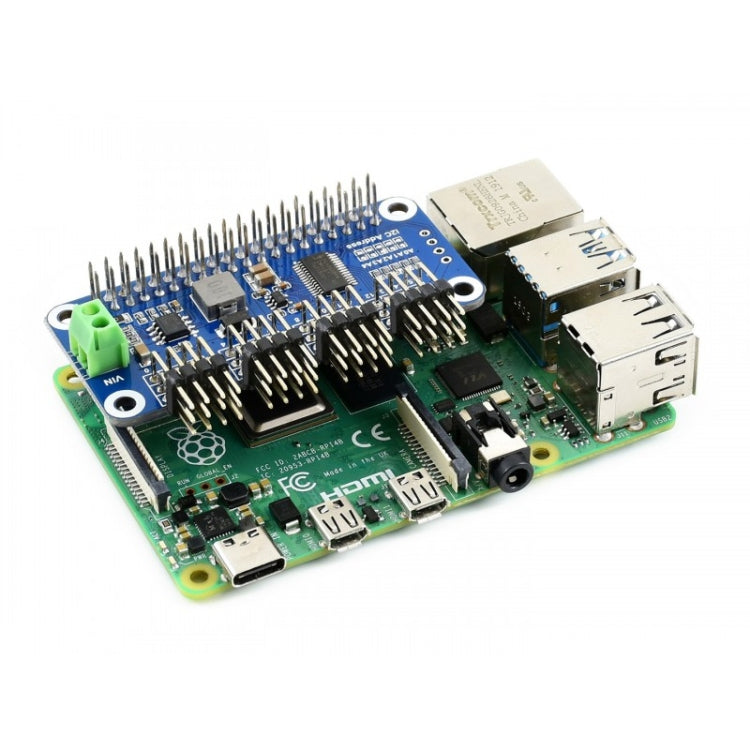

Compatibility: Raspberry Pi series boards, Jetson Nano
Power Supply: 5V (via Pi connector) or 6V-12V (via VIN terminal)
Servo Voltage: 5V
Logic Voltage: 3.3V

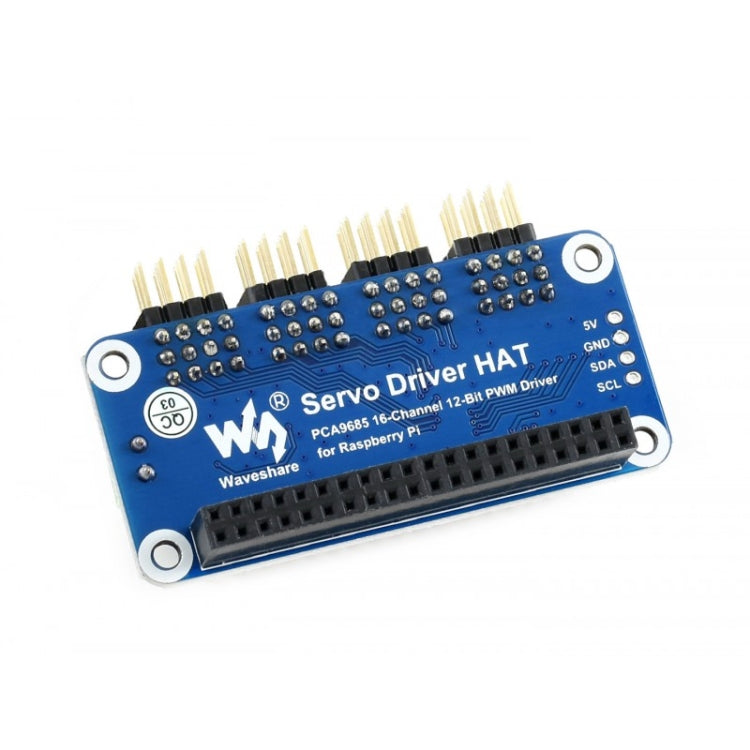

Driver: PCA9685
Control Interface: I2C
Outputs: Up to 16 channels, 12-bit resolution (4096 scales)
Current Output: Up to 3A

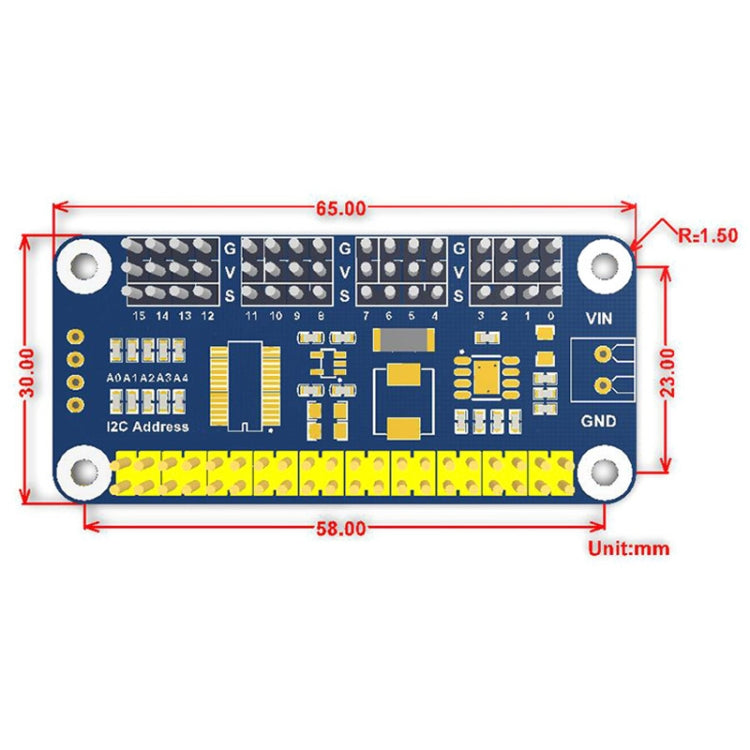

Dimensions: 65mm x 30mm
Mounting Hole Size: 3.0mm
Standard Servo Interface: Compatible with SG90, MG90S, MG996R servos
Includes: Servo Driver HAT, RPi screws pack (2pcs)
Development Resources: Comes with manual and examples in Python for Bluetooth/WiFi remote control
